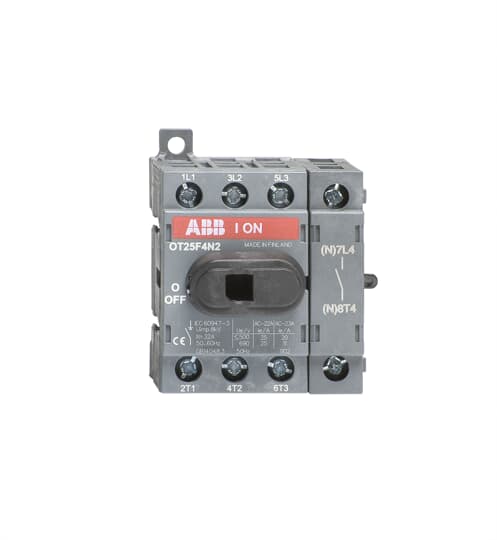

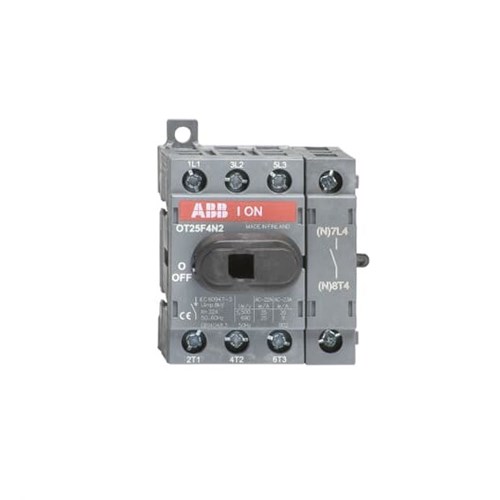

ABB OT25F4N2 Switch-Disconnector IP20 25A 4-P 750VAC Main Circuit Knob Handle Base Mount

Product Code: OT25F4N2

  • Compact design: 48x68x56 mm dimensions
  • High rated current: 25 A capacity
  • Strong impulse withstand: 8 kV rating
  • Secure IP20 protection for safety
  • Screw clamp terminals for easy connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
750V
Rated Operation Power at AC-23, 400 V
9kW
Rated Operational Current AC21-A (Ie)
25A
Rated Operational Current AC22-A (Ie)
25A
Rated Short Time Withstand Current (Icw)
500A
Power Loss
0.6W
Special Functions
No
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
56mm
Height
68mm
Weight
0.125kg
Width
48mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, UL 508, CSA C22.2 No. 14, IEC 60335-2-40, CE, cULus
