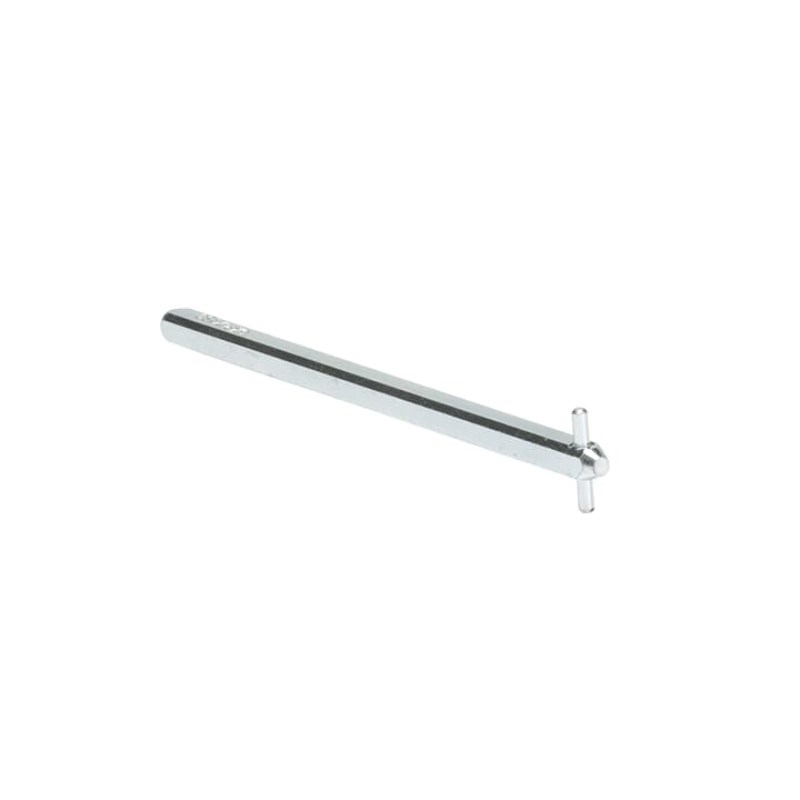

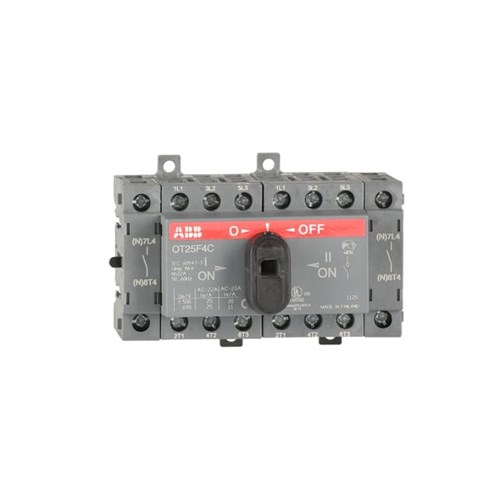

ABB CHANGE-OVER SWITCH KIT 25A 4P/4P BASE MOUNT C/W SHAFT, HANDLE IP65 UP TO 10MM2 CABLE

Product Code: OT25F4CP-K

  • Rated for 25 A and 750 VAC/VDC
  • Features a 4-pole design
  • IP20/IP65 protection rating

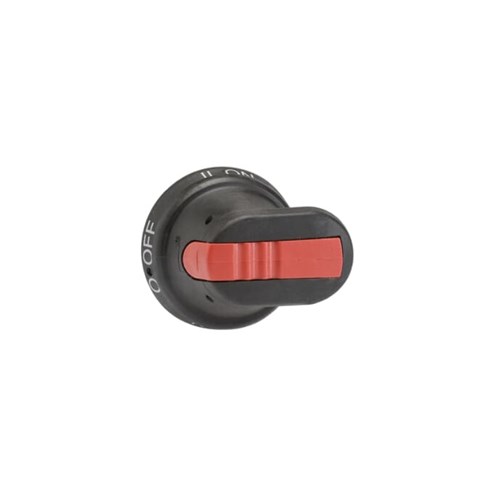

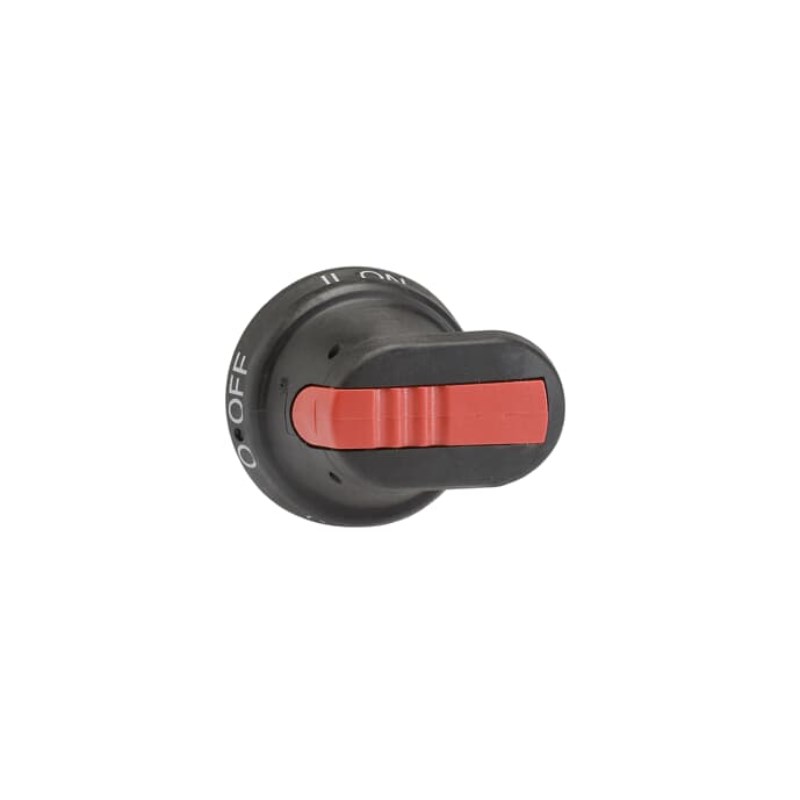

  • Base mounting with pistol handle
  • Black handle for easy identification
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch Kit
Brand
ABB
Series
OT

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
Main Circuit 750V
Rated Operation Power at AC-23, 400 V
9kW
Rated Operational Current AC21-A (Ie)
25A
Rated Operational Current AC22-A (Ie)
25A
Rated Operational Current AC23-A (Ie)
20A
Rated Short Time Withstand Current (Icw)
for 1 s 0.5kA rms
Power Loss
at Rated Operating Conditions per Pole 0.6W
Rated Current (In)
25A
Transition Type
Open
No. of Poles
4P

Dimensions & Physical Data

Depth
68mm (Only the switch)
Height
68mm (Only the switch)
Weight
0.31kg (Only the switch)
Width
96mm (Only the switch)

Environmental

Pollution Degree
3
Operating Temperature
-25°C to 40°C
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
UL 98 / IEC 60947-3

Documents

IPD Product Catalogue V17
