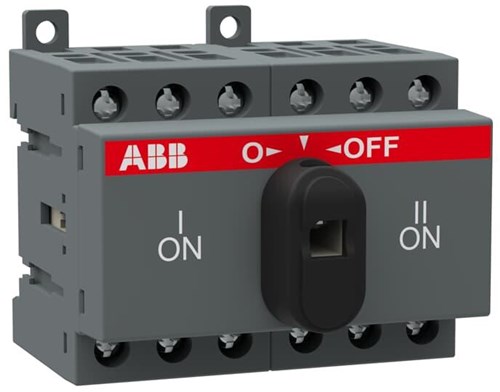

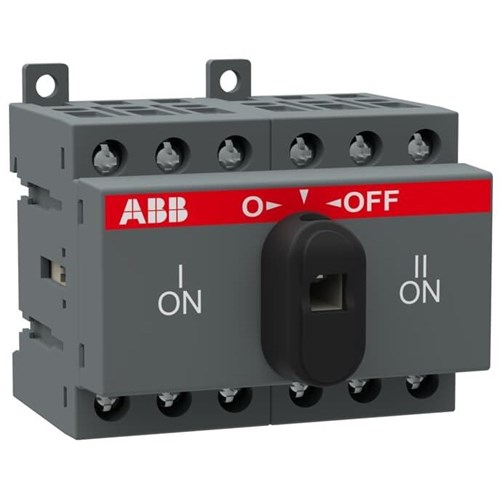

ABB OT25F3C Changeover Switch 25A 415VAC IP20 4-Hole Front Mount 3-P

Product Code: OT25F3C

  • Rated current of 25 A for reliable performance
  • Compact dimensions: 55x68x68 mm
  • RoHS, REACH, CE, WEEE compliant
  • Suitable for distribution board installation
  • Screw clamp terminals for secure connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT25F3C
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
750V
Rated Operation Power at AC-23, 400 V
9kW
Rated Operational Current AC21-A (Ie)
25A
Rated Operational Current AC22-A (Ie)
25A
Rated Operational Current AC23-A (Ie)
20A
Rated Short Time Withstand Current (Icw)
500A
Power Loss
0.6W
Transition Type
Open
No. of Poles
3P

Dimensions & Physical Data

Depth
68mm
Height
68mm
Weight
0.25kg
Width
55mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 98, IEC 60947-3, CE, DNV
