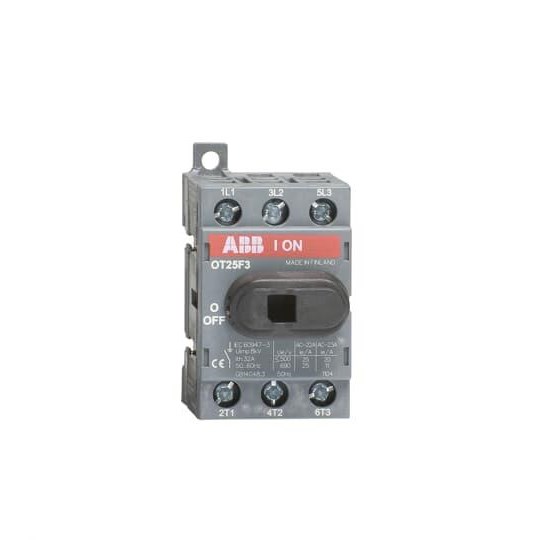

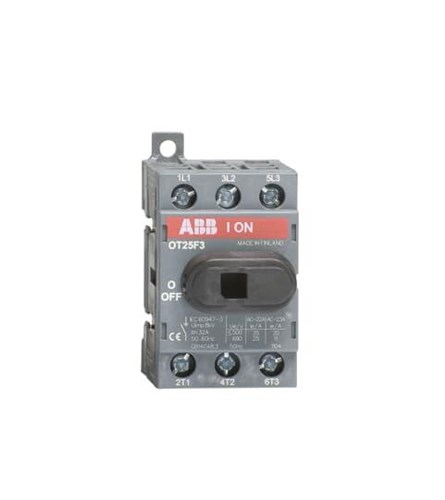

ABB OT25F3 Disconnector Switch IP20 25A 3 750VAC Base Mount

Product Code: OT25F3

  • Suitable for distribution board installation
  • Rated current of 25 A with 3 poles
  • Meets IEC, UL, and CSA standards
  • Compact size: 35mm width, 68mm height
  • Screw clamp terminals for secure connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Disconnector Switch
Brand
ABB
Series
OT25
Application
Power distribution panels, Motor control centers, Industrial machines, Backup / changeover systems, Commercial buildings

Electrical

Max. Rated Operation AC Voltage (Ue)
750V AC
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Operational Current AC22-A (Ie)
250A
Rated Operational Current AC23-A (Ie)
20A
Rated Uninterrupted Current (Iu)
25A
Rated Current (In)
25A
Rated Frequency
50Hz to 60Hz
Transition Type
Open
Mechanical Life
20000
No. of Poles
3P

Mechanical

Housing Material
Insulating plastic
Padlockable
Yes

Dimensions & Physical Data

Depth
35mm
Height
56mm
Weight
0.09kg
Width
68mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-40 °C to +60…70 °C
IP Rating
IP65 (enclosed)

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
