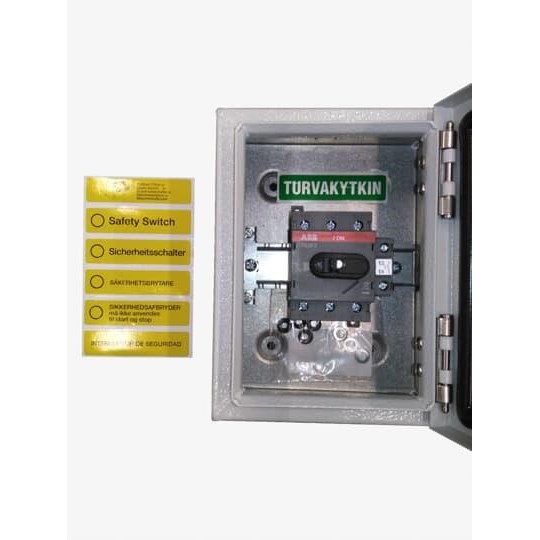

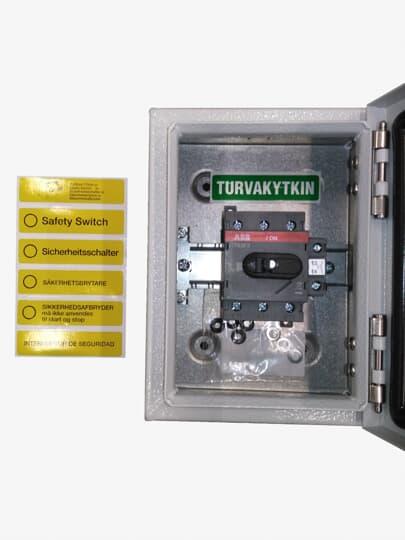

ABB OT25ETMM3TE Safety Switch IP65 45A 750VAC Screw Clamp Terminal

Product Code: OT25ETMM3TE

  • Safety switch with 45A rated current
  • Compact size: 150x200x100 mm
  • Meets IEC 60947-1, 3 standards
  • High protection level: IP65
  • Durable steel sheet construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
EMC safety switch
Brand
ABB
Series
OT
Application
Safety isolation and switch-disconnector applications

Electrical

Utilization Category
AC-23
Breaking Capacity
Icm 1.4 kA at 690 V AC
Rated Current
30 A
Rated Frequency
50/60 Hz
Rated Voltage
750 V AC
No. of Poles
3P

Mechanical

Body Style
Enclosed
Cable Entry
Top/Bottom; 2 x Ø32.5 + Ø16.5 per side
Colour
Grey enclosure / black selector handle
Material
Alu-zinc coated steel sheet with polyester powder coating
Mounting
Surface mounted enclosure
Connection/Termination
Screw terminals; 1 NO auxiliary; 1.5 - 35 mm²

Dimensions & Physical Data

Depth
100 mm
Height
200 mm
Weight
1.9 kg
Width
150 mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards
IEC 60947-1 & -3
Certifications / Approvals
CE
