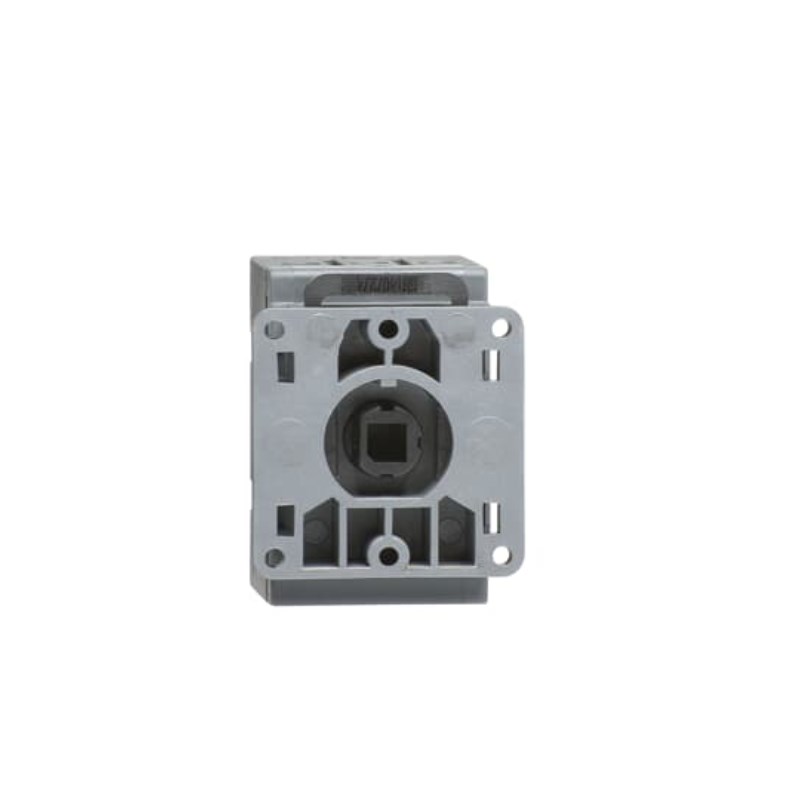

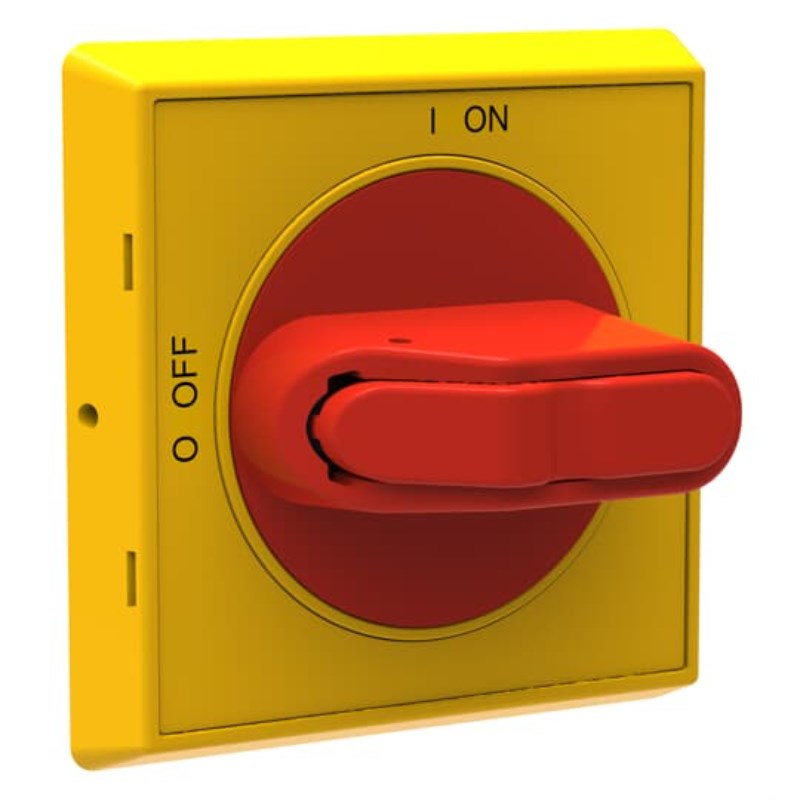

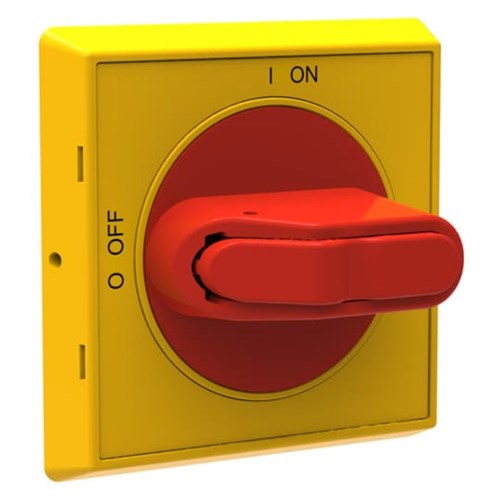

LBS 25A 3P DOOR MOUNT ABB KIT C/W R/Y DOOR HANDLE 22MM FIX IP65, UP 10MM2 CABLE

Product Code: OT25D22R3-K

  • Door mount with selector handle for easy access
  • Rated current of 25 A, voltage up to 750 V
  • Complies with IEC, UL, and CSA standards
  • Compact size: 43 mm W x 54 mm H x 52 mm D
  • Screw clamp terminals for secure connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Load Break Switch Kit
Brand
ABB
Series
OT
Application
Manufacturing, commercial buildings, HVAC

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
Main Circuit 750V
Rated Operational Current AC21-A (Ie)
25A
Rated Operational Current AC22-A (Ie)
25A
Rated Operational Current AC23-A (Ie)
20A
Rated Short Time Withstand Current (Icw)
for 1 s 0.5kA
Power Loss
at Rated Operating Conditions per Pole 0.6W
Rated Current (In)
25A
Special Functions
No
Mechanical Life
20000
No. of Poles
3P

Dimensions & Physical Data

Depth
56mm
Height
68mm
Weight
0.09kg
Width
35mm

Environmental

Pollution Degree
3
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3 / UL 508 / CSA C22.2 No. 14

Accessories & Additional Information

Included Components
Handle and Shaft
