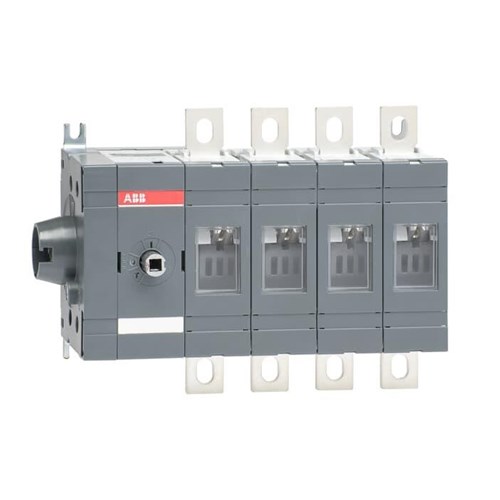

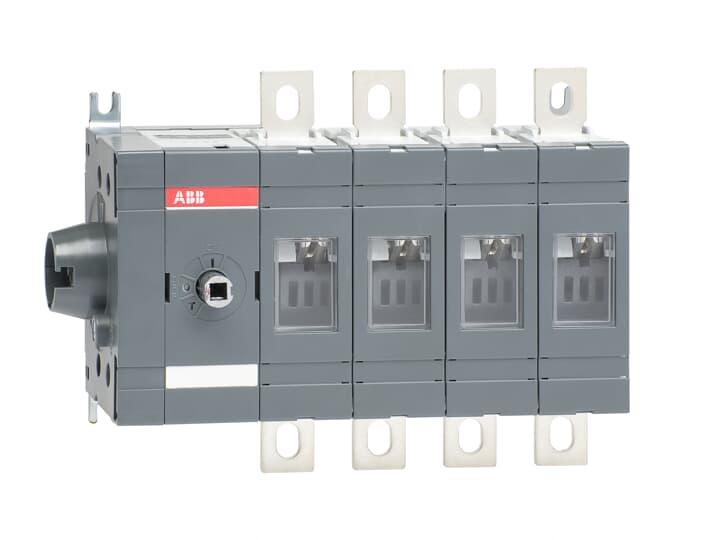

ABB OT250ES04 Disconnector Switch IP65 250A 4 1000VAC Base Mount

Product Code: OT250ES04

  • 250 A base mount load break switch
  • Complies with IEC 60947-3 standards
  • IP65 protection, NEMA 1 rated
  • Suitable for distribution boards
  • 4-pole design with side operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
145kW
Rated Operational Current AC21-A (Ie)
250A
Rated Operational Current AC22-A (Ie)
250A
Rated Operational Current AC23-A (Ie)
250A
Rated Short Time Withstand Current (Icw)
8000A
Power Loss
6.5W
Special Functions
No
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
82mm
Height
150mm
Weight
1.9kg
Width
216.5mm

Environmental

Pollution Degree
3
IP Rating
IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, DNV GL
