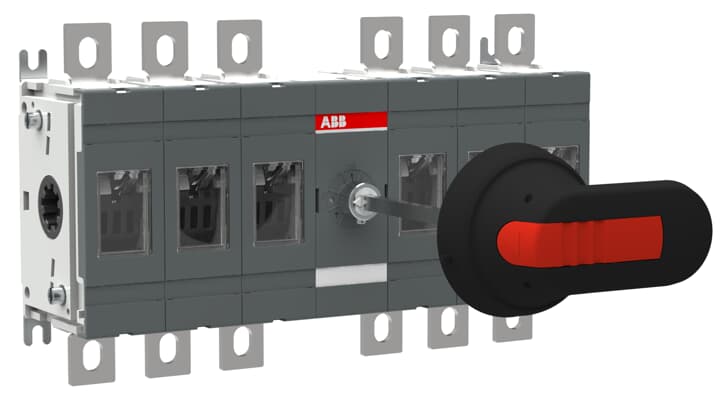

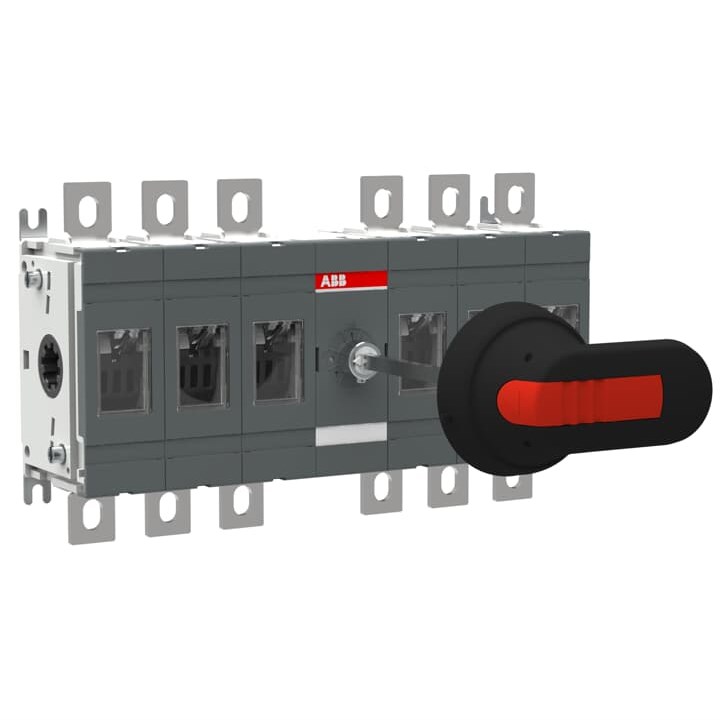

ABB SWITCH 250A 6P C/W HANDLE & SHAFT, BLACK, IP65 CENTRE MECHANISM

Product Code: OT250E33P

  • Rated for high current: 250 A
  • Handles up to 1000 V voltage
  • Strong short circuit capacity of 30 kA
  • Flexible terminal positions: top and bottom options
  • Lockable handle for added security
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnectors
Brand
ABB
Series
OT

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 1000V
Rated Operational Current AC21-A (Ie)
250A
Rated Short Time Withstand Current (Icw)
for 1 s 8kA
Power Loss
at Rated Operating Conditions per Pole 6.5W
Rated Current (In)
250A
Special Functions
No
Mechanical Life
20000
No. of Poles
6P

Mechanical

Padlockable
Yes

Dimensions & Physical Data

Depth
82.5mm
Height
150mm
Weight
2.6kg
Width
255.5mm

Environmental

Pollution Degree
3
IP Rating
Front IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
