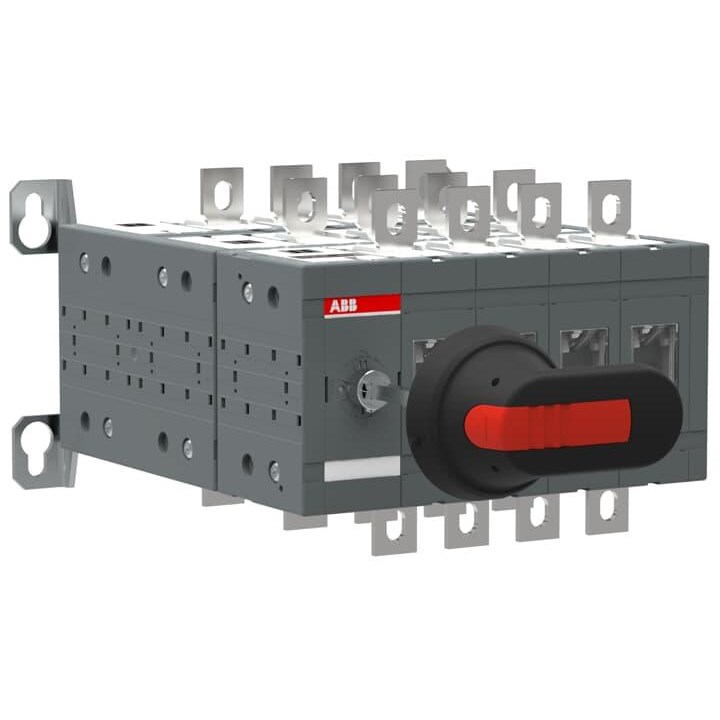

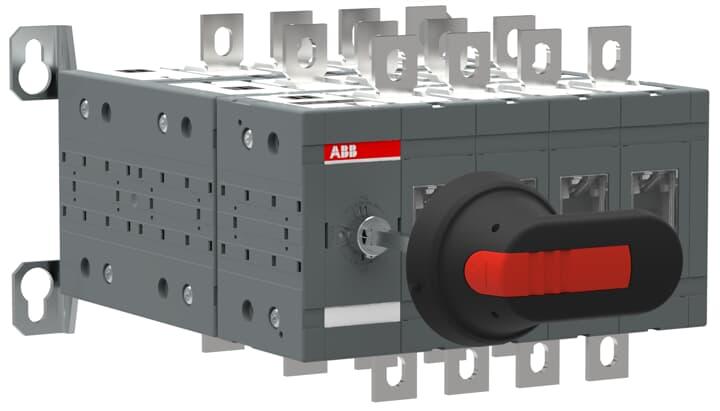

ABB OT250E04YP Bypass Switch 4 1000V 250A Screw Terminal

Product Code: OT250E04YP

  • Suitable for 250 A current
  • Compact size: 229x150x236 mm
  • High voltage rating of 1000 V
  • Durable IP20 protection rating
  • Efficient power loss at 6.5 W
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Bypass Switch
Brand
ABB
Series
OT
Application
Safe maintenance of critical components while the load is supplied directly from the source

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
140kW
Rated Operational Current AC21-A (Ie)
250A
Rated Operational Current AC22-A (Ie)
250A
Rated Operational Current AC23-A (Ie)
250A
Power Loss
6.5W
Transition Type
Open
Mechanical Life
8000 cycles
No. of Poles
4P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
236mm
Height
150mm
Width
229mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, CE
