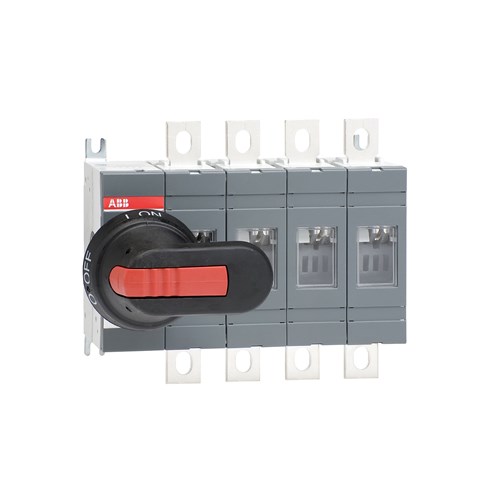

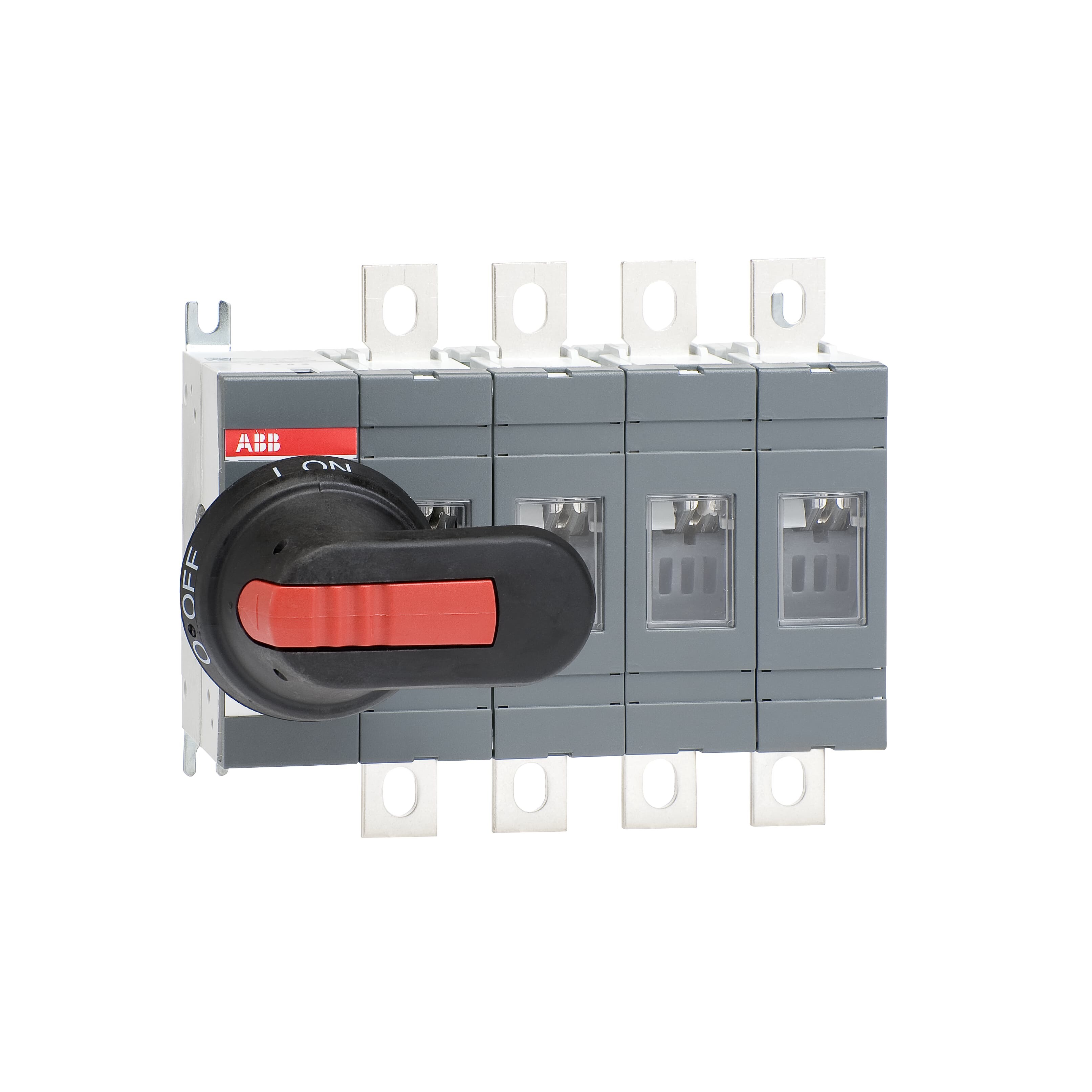

ABB SWITCH 250A 4P C/W HANDLE & SHAFT, BLACK, IP65 LEFT HAND MECHANISM

Product Code: OT250E04P

  • Rated for 250A and up to 1000V
  • Supports multiple power ratings: 75kW to 250kW
  • Complies with ROHS, REACH, ATEX, CE, UL standards
  • Compact size: 180.5mm W x 150mm H x 82.5mm L
  • Durable black finish with IP00 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnectors
Brand
ABB
Series
OT

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 1000V
Rated Operation Power at AC-23, 400 V
145kW
Rated Operational Current AC21-A (Ie)
250A
Rated Operational Current AC22-A (Ie)
250A
Rated Operational Current AC23-A (Ie)
250A
Rated Short Time Withstand Current (Icw)
for 1 s 8kA
Power Loss
at Rated Operating Conditions per Pole 6.5W
Rated Current (In)
250A
Special Functions
No
Mechanical Life
20000
No. of Poles
4P

Mechanical

Padlockable
Yes

Dimensions & Physical Data

Depth
82.5mm
Height
150mm
Weight
1.9kg
Width
180.5mm

Environmental

Pollution Degree
3
IP Rating
Front IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
