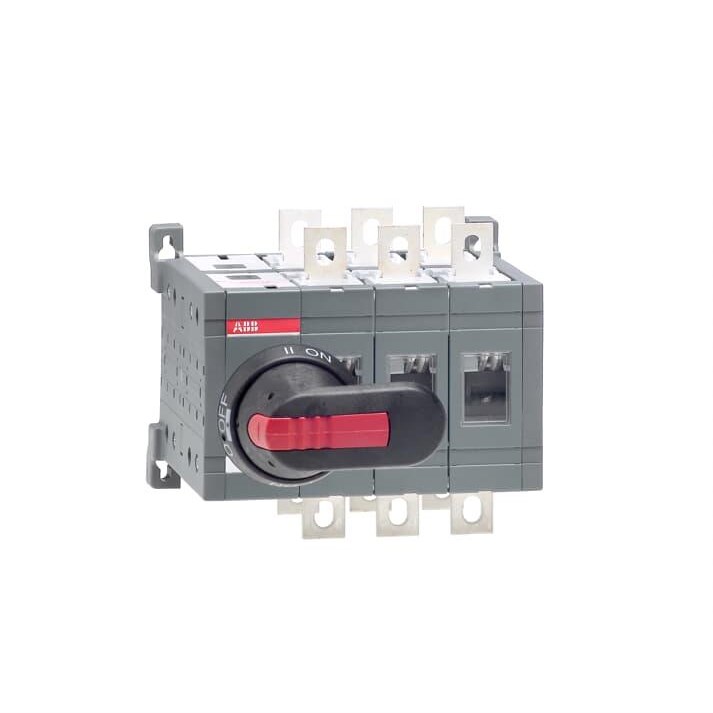

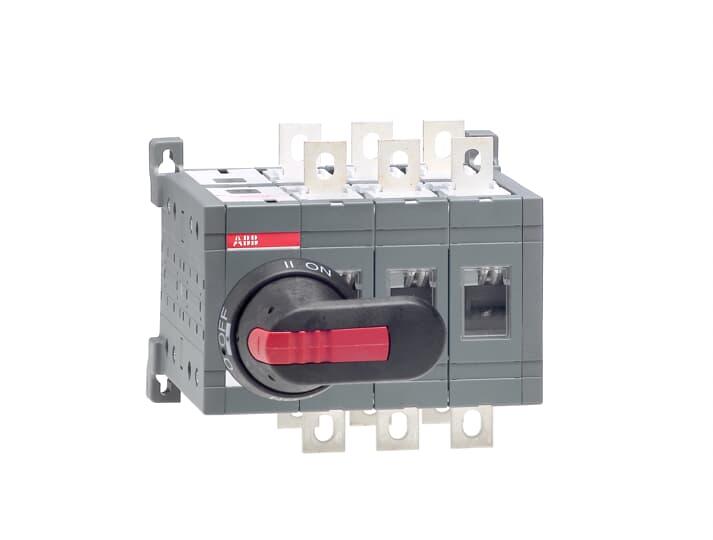

ABB OT250E03CP Changeover Switch 250A 415VAC IP20 4-Hole Front Mount 3-P

Product Code: OT250E03CP

  • Rated for 250 A and 415 VAC
  • Compact size: 170x150x160 mm
  • RoHS, REACH, CE compliant
  • Interlockable & padlockable (O-position)
  • Suitable for distribution boards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT250
Application
Commercial buildings, Industrial plants, Data centers

Electrical

Max. Rated Operation AC Voltage (Ue)
1000V AC
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
415V
Rated Operation Power at AC-23, 400 V
140kW
Rated Permanent Current at AC-21, 400 V
250A
Rated Uninterrupted Current (Iu)
250A
Rated Current (In)
250A
Rated Frequency
50Hz to 60Hz
No. of Poles
3P

Mechanical

Padlockable
Padlockable in O-Position

Dimensions & Physical Data

Weight
3.3kg

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60947-1, CSA, CE, RoHS, REACH
