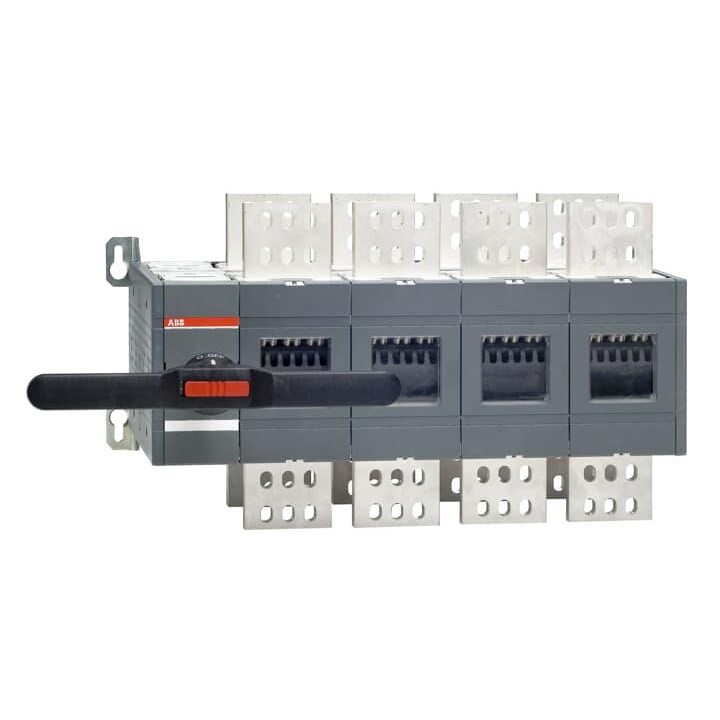

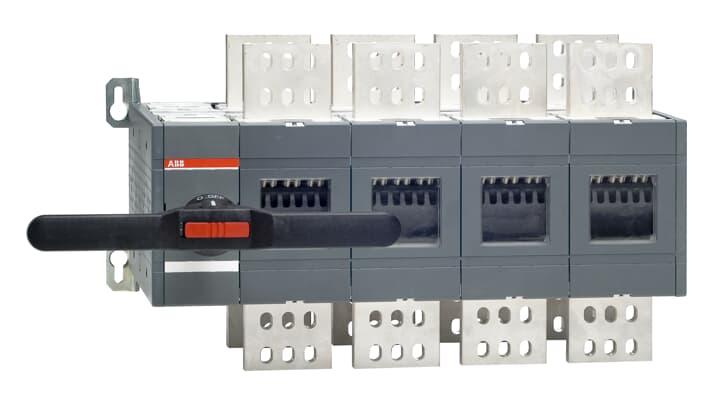

ABB OT2500E04CP Changeover Switch 2500A 415VAC IP20 4-Hole Front Mount 4-P

Product Code: OT2500E04CP

  • Rated current of 2500 A for high capacity
  • Compliant with RoHS, REACH, and CE standards
  • Compact size: 664x377x335 mm (WxHxD)
  • Pistol handle with I-O-II indicators
  • Padlockable in O-position for security
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT2500E04CP
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Permanent Current at AC-21, 400 V
2500A
Rated Short Time Withstand Current (Icw)
55000A
Power Loss
85W
Transition Type
Open
No. of Poles
4P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
335mm
Height
377mm
Weight
69.55kg
Width
664mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, DNV

Documents

IPD Product Catalogue V17
