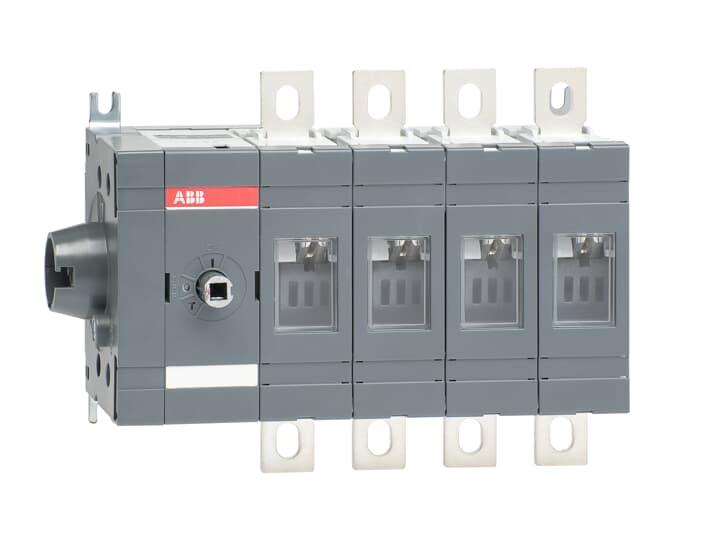

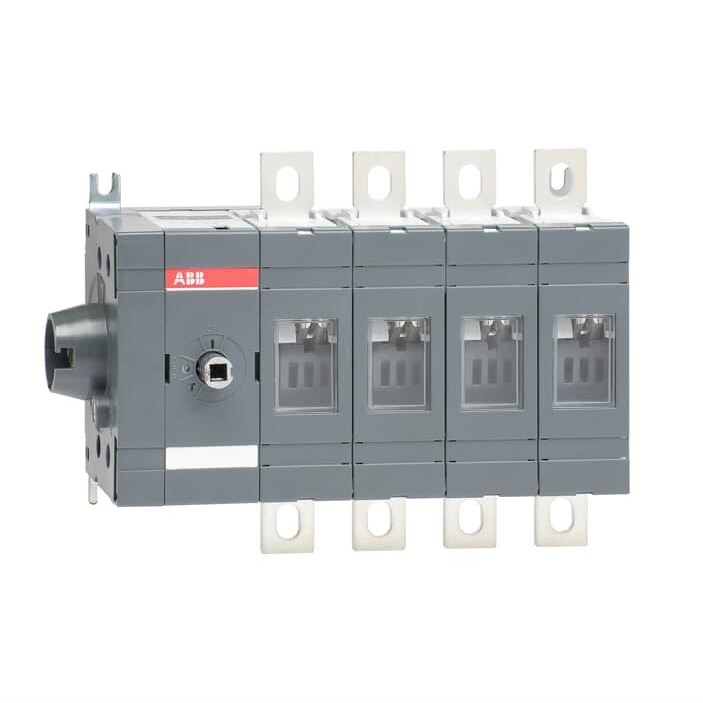

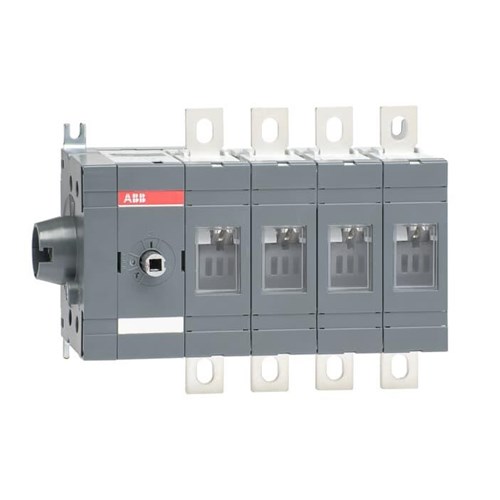

ABB OT200ES04 Disconnector Switch IP65 200A 4 1000VAC Base Mount

Product Code: OT200ES04

  • Rated current of 200 A for robust performance
  • Complies with IEC 60947-3 standards
  • IP65 protection against dust and water
  • Handles up to 1000 VAC rated voltage
  • Compact size: 216.5x150x82.5 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
110kW
Rated Operational Current AC21-A (Ie)
200A
Rated Operational Current AC22-A (Ie)
200A
Rated Operational Current AC23-A (Ie)
200A
Rated Short Time Withstand Current (Icw)
8000A
Power Loss
4W
Special Functions
No
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
82.5mm
Height
150mm
Weight
1.9kg
Width
216.5mm

Environmental

Pollution Degree
3
IP Rating
IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, DNV GL
