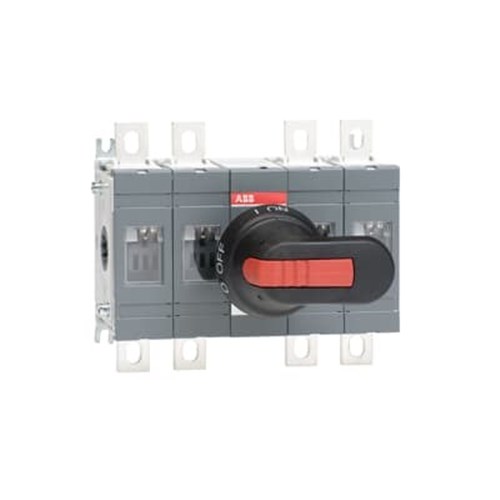

ABB OT200E22P Base Mount Switch IP00 200A 4-P 1000V Black Base Mount

Product Code: OT200E22P

  • Enclosed design for added safety
  • Handles up to 200 A current
  • Supports voltage up to 1000 V
  • Compact size: 180.5x150x82.5 mm
  • Operates with front mode control
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnectors
Brand
ABB
Series
OT

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 1000V
Rated Operation Power at AC-23, 400 V
110kW
Rated Operational Current AC21-A (Ie)
200A
Rated Operational Current AC22-A (Ie)
200A
Rated Operational Current AC23-A (Ie)
200A
Rated Short Time Withstand Current (Icw)
for 1 s 8kA
Power Loss
at Rated Operating Conditions per Pole 4.0W
Special Functions
No
Mechanical Life
20000
No. of Poles
4P

Mechanical

Padlockable
Yes

Dimensions & Physical Data

Depth
82.5mm
Height
150mm
Weight
1.8kg
Width
185.5mm

Environmental

Pollution Degree
3
Operating Temperature
-25°C to 40°C
IP Rating
Front IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
