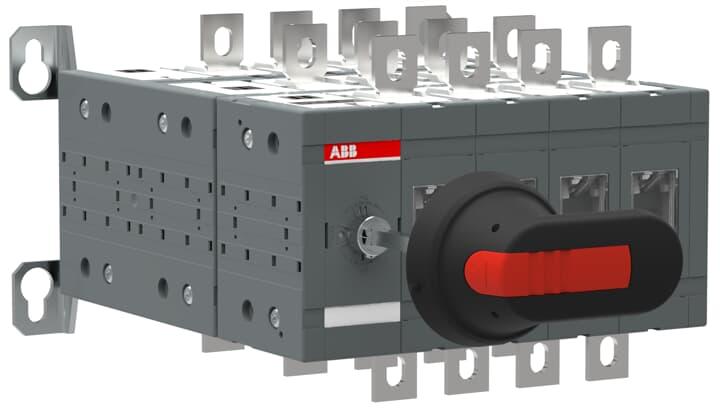

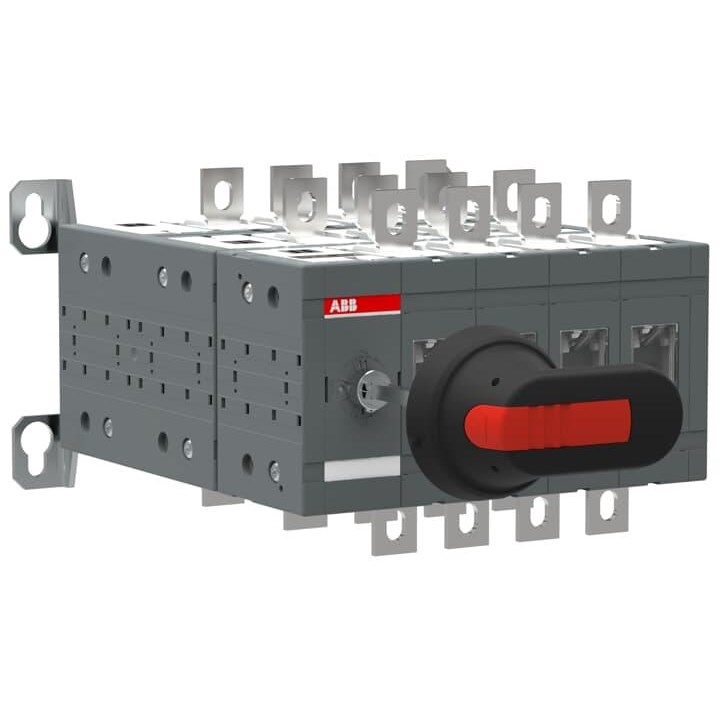

ABB OT200E04YP Bypass Switch 4 1000V 200A 200A 200A 110 kW 132 kW 200 kW Screw Terminal

Product Code: OT200E04YP

  • Rated current of 2000 A for high capacity
  • 4-pole design with switched-simultaneous function
  • IP20 protection and IP3 pollution degree
  • Screw clamp terminals for secure connections
  • Black handle with end switch operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Bypass Switch
Brand
ABB
Series
OT
Application
Safe maintenance of critical components while the load is supplied directly from the source

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
110kW
Rated Operational Current AC21-A (Ie)
200A
Rated Operational Current AC22-A (Ie)
200A
Rated Operational Current AC23-A (Ie)
200A
Power Loss
4W
Transition Type
Open
Mechanical Life
8000 cycles
No. of Poles
4P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
236mm
Height
150mm
Weight
7.5kg
Width
229mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, CE
