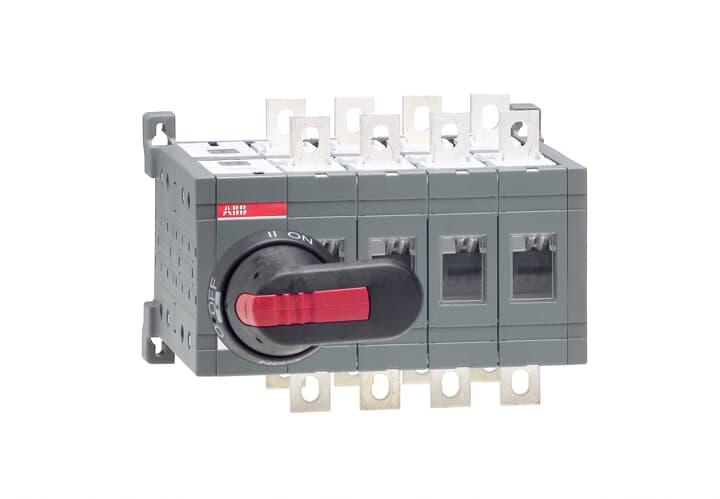

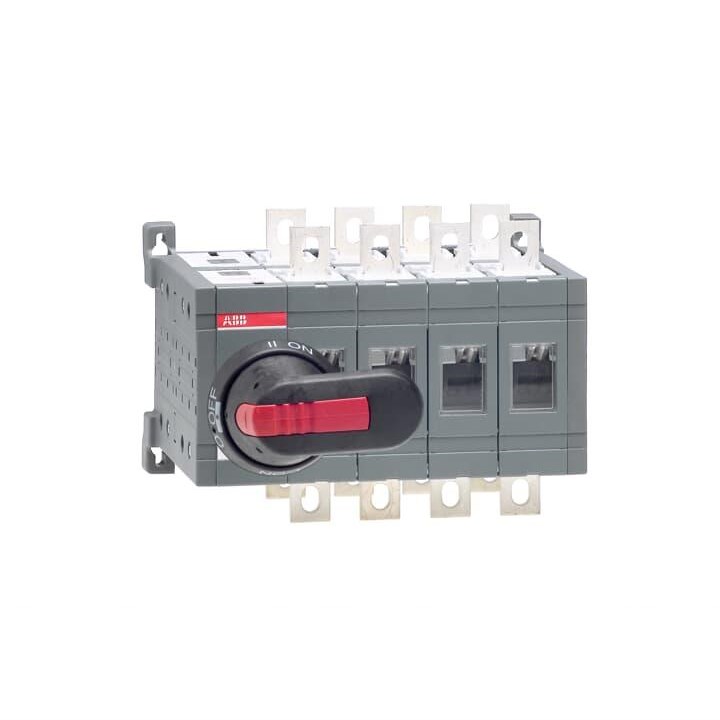

ABB OT200E04CP Changeover Switch 200A 415VAC IP20 4-Hole Front Mount 4-P

Product Code: OT200E04CP

  • Rated for 200 A current and 415 VAC voltage
  • Compact size: 205x150x160 mm
  • Complies with RoHS, REACH, CE standards
  • Pistol handle with I-O-II indicators
  • Suitable for distribution board installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT200E04CP
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
110kW
Rated Operational Current AC21-A (Ie)
200A
Rated Operational Current AC22-A (Ie)
200A
Rated Operational Current AC23-A (Ie)
200A
Rated Short Time Withstand Current (Icw)
8000A
Power Loss
4W
Transition Type
Open
No. of Poles
4P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
160mm
Height
150mm
Weight
4.1kg
Width
205mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, DNV
