Specifications

Product Type Disconnector Switch	Brand ABB	Series OT200
Application Power distribution panels, Motor control centers, Industrial machines, Backup / changeover systems, Commercial buildings

Max. Rated Operation AC Voltage (Ue) 1000V AC	Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 12kV
Rated Insulation Voltage (Ui) 1000 V (acc. to IEC/EN 60664-1 )	Rated Operating Voltage 1000V	Rated Operation Power at AC-23, 400 V 110kW
Rated Operational Current AC21-A (Ie) 200A (≤ 500V)	Rated Operational Current AC22-A (Ie) 200A	Rated Operational Current AC23-A (Ie) 200A
Rated Permanent Current at AC-21, 400 V 200A	Rated Short Time Withstand Current (Icw) 8000A	Rated Uninterrupted Current (Iu) 200A
Power Loss 4W/Pole	Rated Current (In) 200A	Rated Frequency 50Hz to 60Hz
Transition Type Open	Mechanical Life 20000	No. of Poles 3P

Housing Material

Insulating plastic

Padlockable

Yes

Depth 159.5mm	Height 150mm	Weight 2.6kg
Width 170mm

Rated Surrounding Temperature Without Derating 40°C	Pollution Degree 3	Storage Temperature -40°C to 70°C
Operating Temperature -40 °C to +60…70 °C	IP Rating IP65 (enclosed)

Standards and Approvals

IEC 60947-3

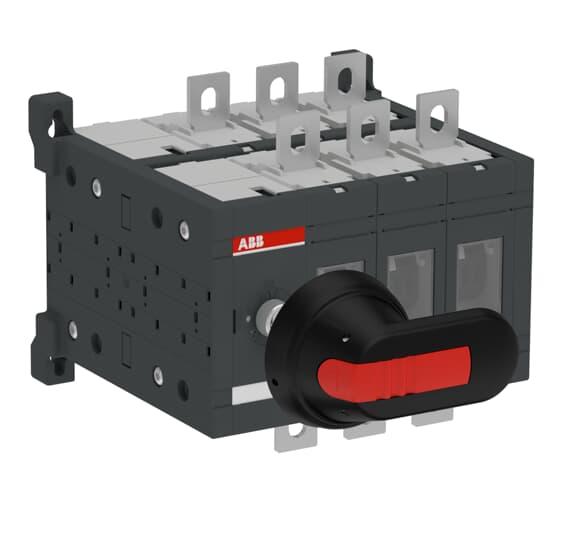

ABB OT200E03DP Disconnector Switch 6-P 200A 1000VAC IP00
