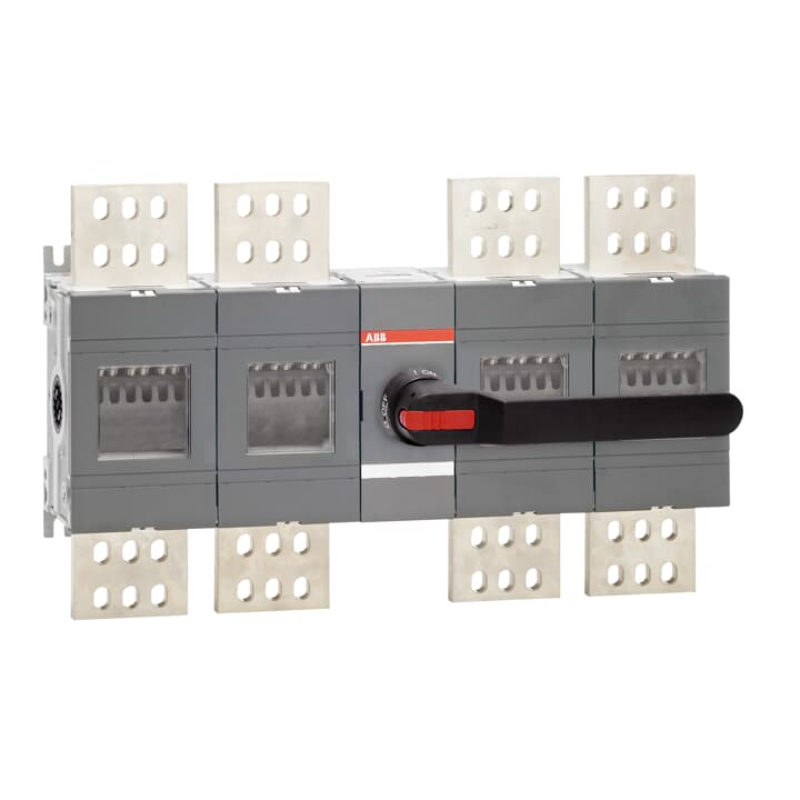

ABB SWITCH 2000A 4P C/W HANDLE & SHAFT, BLACK, IP65 CENTRE MECHANISM

Product Code: OT2000E22P

  • Suitable for 2000 A applications
  • Supports up to 1000 VAC/VDC
  • Features a 4-pole design
  • IP65 protection rating
  • Base mounting with centre operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnectors
Brand
ABB
Series
OT

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 1000V
Rated Short Time Withstand Current (Icw)
for 1 s 55kA
Power Loss
at Rated Operating Conditions per Pole 55W
Rated Current (In)
2000A
Special Functions
No
Mechanical Life
6000
No. of Poles
4P

Mechanical

Padlockable
Yes

Dimensions & Physical Data

Depth
145.5mm
Height
376.5mm
Weight
33.3kg
Width
598.5mm

Environmental

Pollution Degree
3
IP Rating
Front IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
