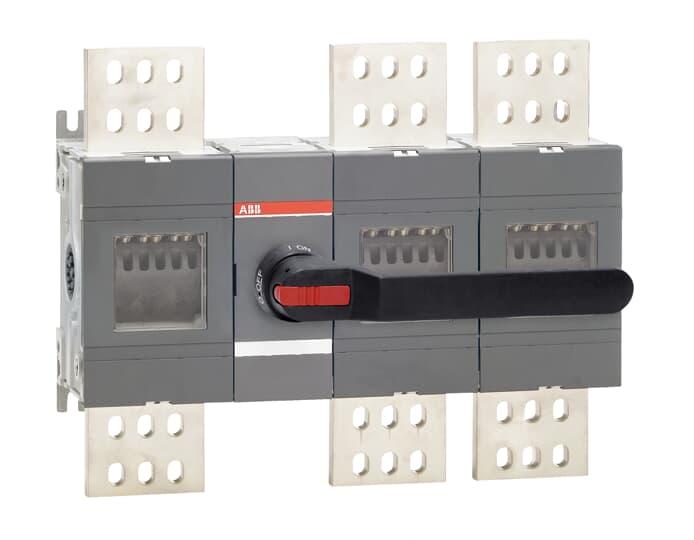

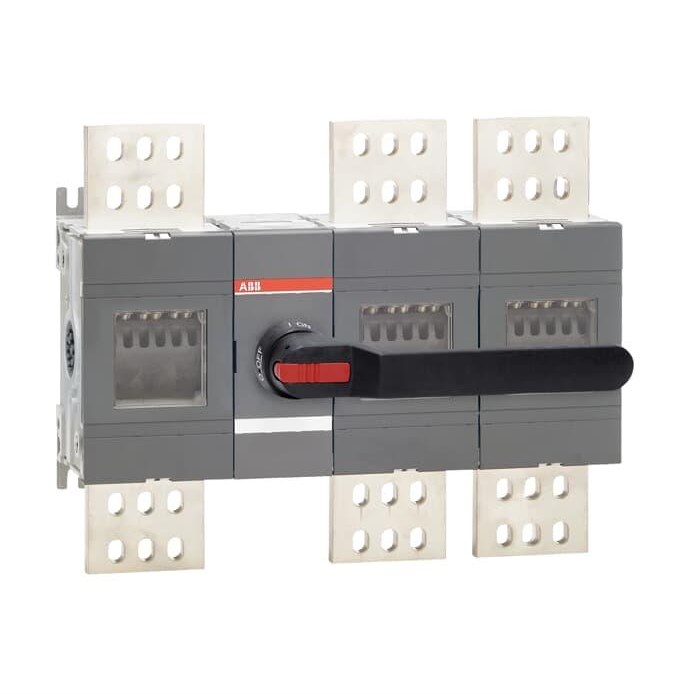

ABB OT2000E12P Disconnector Switch IP65 2000A 3 1000VAC Black Pistol Handle Base Mount

Product Code: OT2000E12P

  • Rated for 2000 A current
  • Complies with IEC 60947-3
  • IP65 protection rating
  • Suitable for distribution boards
  • Interlockable pistol handle
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Short Time Withstand Current (Icw)
55000A
Power Loss
55W
Special Functions
No
Mechanical Life
6000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
145.5mm
Height
376.5mm
Weight
25.8kg
Width
472.5mm

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, DNV GL
