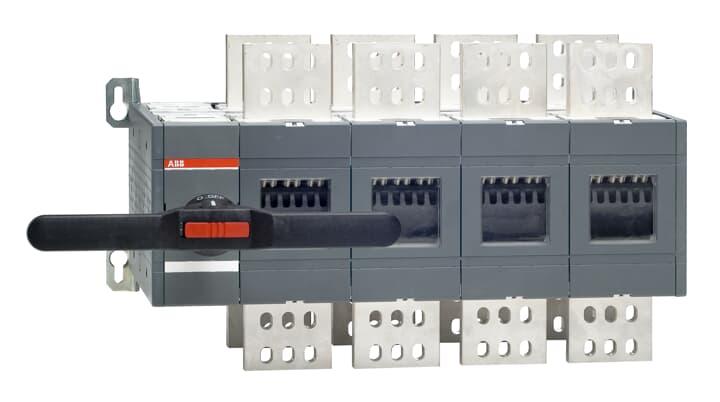

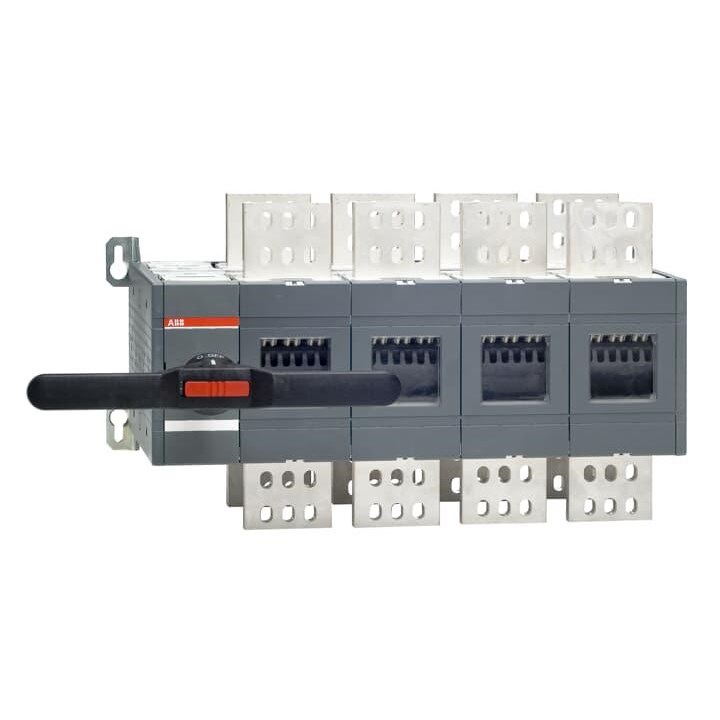

ABB OT2000E04CP Changeover Switch 2000A 415VAC IP20 4-Hole Front Mount 4-P

Product Code: OT2000E04CP

  • Rated current capacity of 2000 A
  • Supports 415 VAC and 1000 V insulation
  • Front operation with pistol handle
  • Interlockable and padlockable in O-position
  • RoHS, REACH, CE, WEEE compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT2000E04CP
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Permanent Current at AC-21, 400 V
2000A
Rated Short Time Withstand Current (Icw)
55000A
Power Loss
55W
Transition Type
Open
No. of Poles
4P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
335mm
Height
377mm
Weight
69.55kg
Width
664mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, DNV
