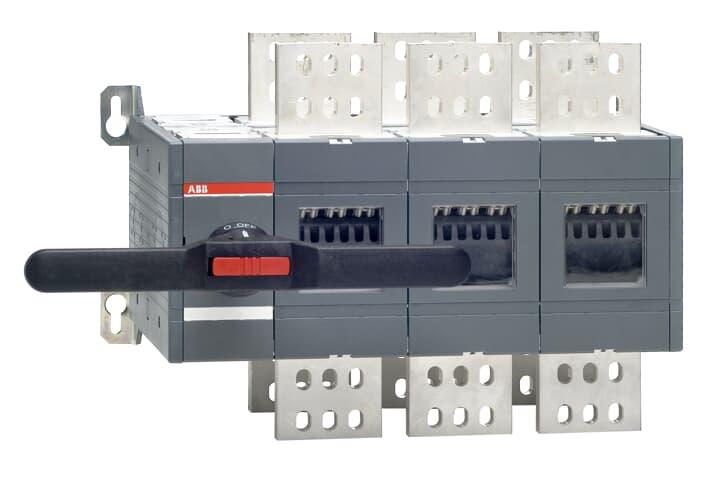

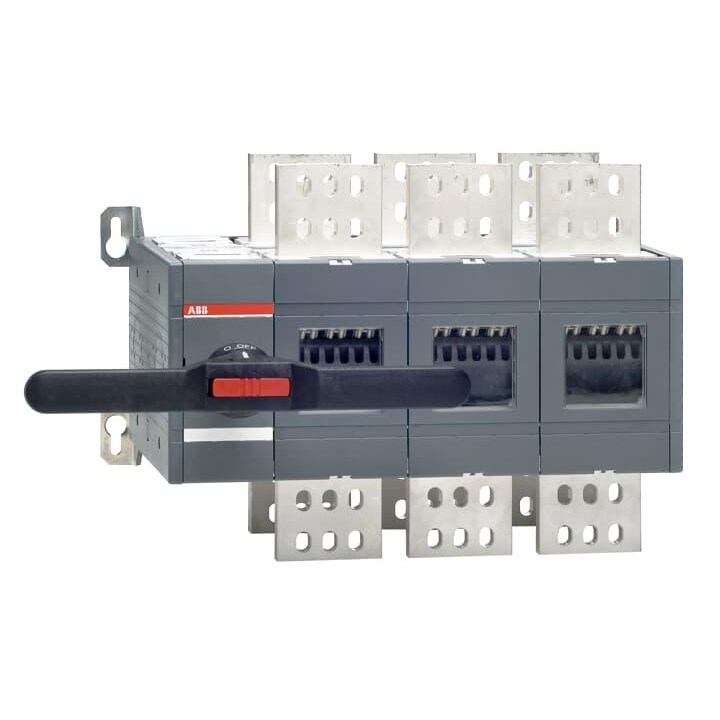

ABB OT2000E03CP Changeover Switch 2000A 415VAC IP20 4-Hole Front Mount 3-P

Product Code: OT2000E03CP

  • Rated current: 2000 A, voltage: 415 VAC
  • Compact size: 538x377x335 mm, weight: 70 kg
  • Compliance: RoHS, REACH, CE, WEEE
  • Protection level: IP20 and NEMA 1
  • Padlockable in O-position for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT2000E03CP
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Permanent Current at AC-21, 400 V
2000A
Rated Short Time Withstand Current (Icw)
55000A
Power Loss
55W
Transition Type
Open
No. of Poles
3P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
335mm
Height
377mm
Weight
54.285kg
Width
538mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, DNV
