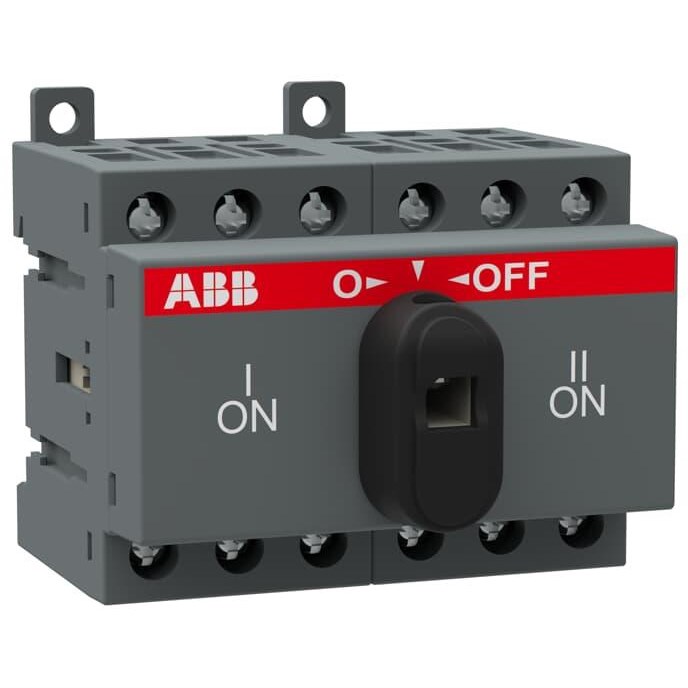

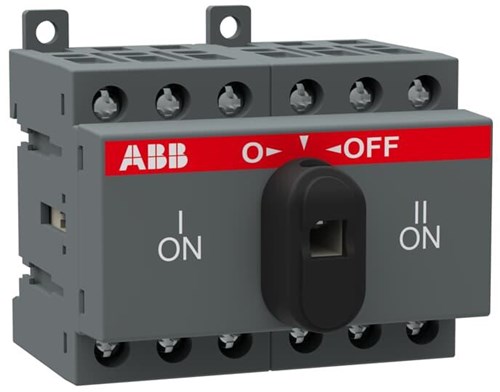

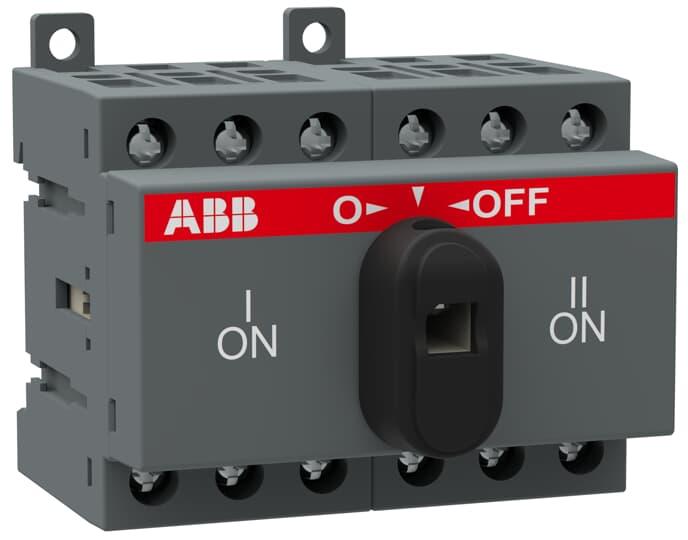

ABB OT16F3C Changeover Switch 16A 415VAC IP20 4-Hole Front Mount 3-P

Product Code: OT16F3C

  • Manual switch for distribution boards
  • Rated 16 A, 415 VAC, 7.5 kW power
  • UL, IEC, RoHS, REACH & CE certified
  • IP20 protection with screw clamp terminals
  • Interlockable with I-O-II indicators
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT16F3C
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
750V
Rated Operation Power at AC-23, 400 V
7.5kW
Rated Operational Current AC21-A (Ie)
16A
Rated Operational Current AC22-A (Ie)
16A
Rated Operational Current AC23-A (Ie)
16A
Rated Short Time Withstand Current (Icw)
500A
Power Loss
0.3W
Transition Type
Open
No. of Poles
3P

Dimensions & Physical Data

Depth
68mm
Height
68mm
Weight
0.55kg
Width
70mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 98, IEC 60947-3, CE, DNV
