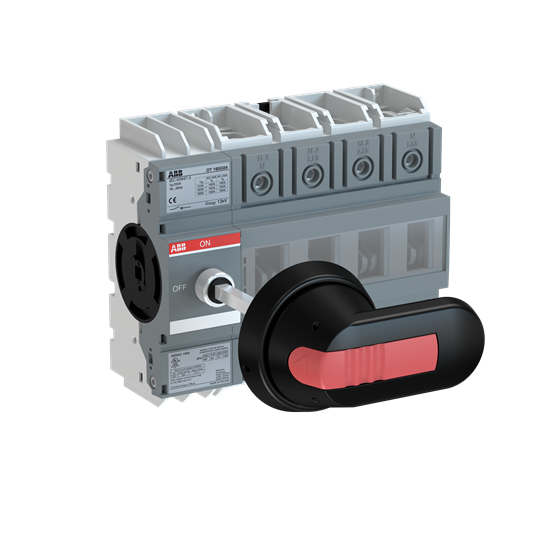

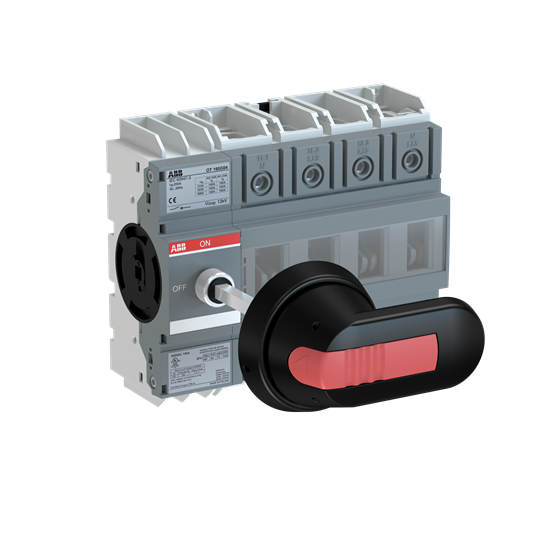

ABB OT160G04P Switch-Disconnector IP20 160A 4-P 1000VAC Main Circuit Black Base Mount

Product Code: OT160G04P

  • Fuse switch for 160 A current
  • Handles up to 1000 VAC voltage
  • Offers IP20 protection rating
  • Suitable for 10-70 sq-mm Cu cables
  • Features screw clamp terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
75kW
Rated Operational Current AC21-A (Ie)
160A
Rated Operational Current AC22-A (Ie)
160A
Rated Operational Current AC23-A (Ie)
160A
Rated Short Time Withstand Current (Icw)
4000A
Power Loss
6.5W
Special Functions
No
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
73mm
Height
130mm
Weight
1.2kg
Width
150mm

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, UL 98, CSA C22.2 NO.4, IEC 60335-2-40, CE, DNV GL, cULus
