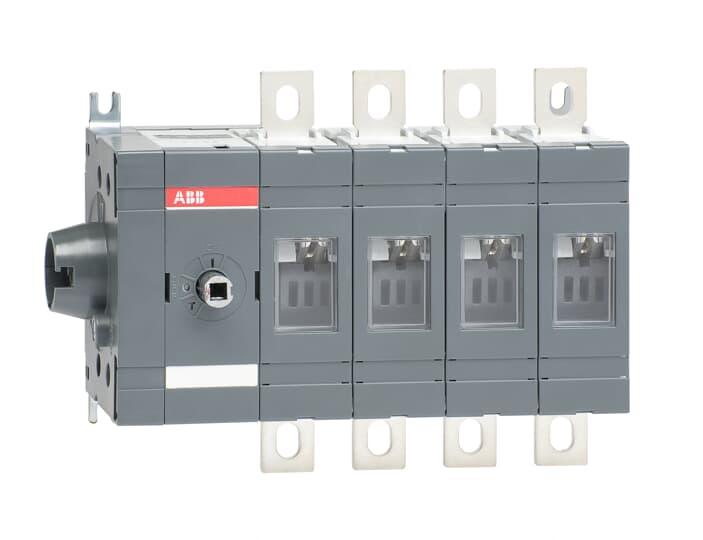

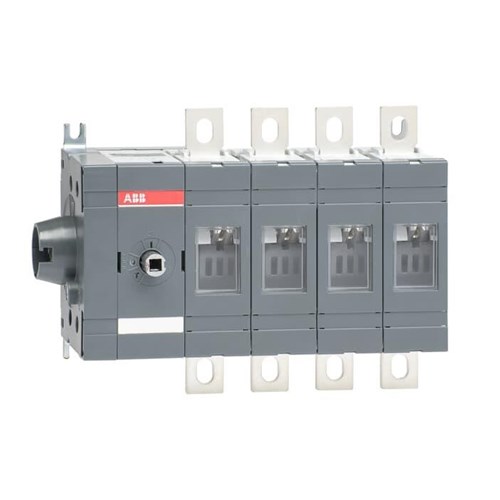

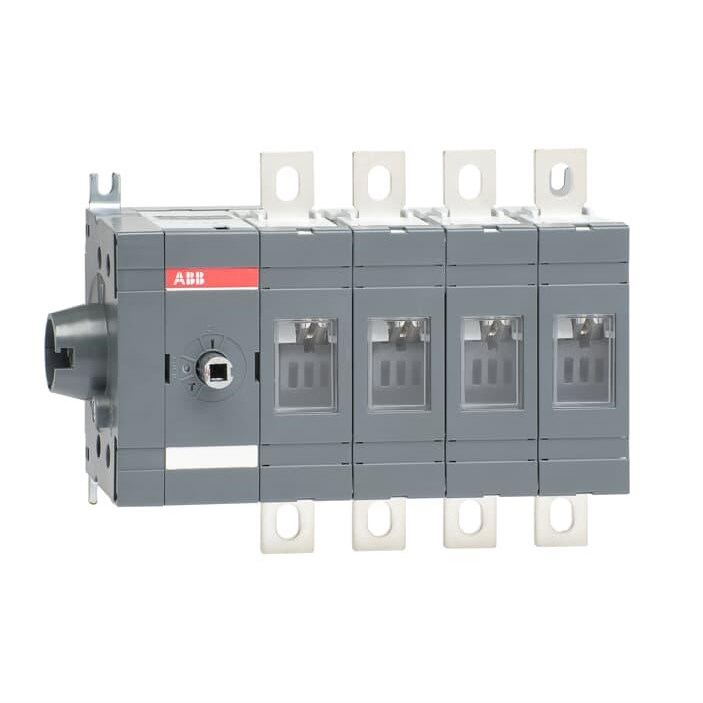

ABB OT160EVS04 Disconnector Switch IP65 160A 4 1000VAC Base Mount

Product Code: OT160EVS04

  • Base mount load break switch, 160 A rated current
  • Complies with IEC 60947-3 standards
  • IP65 protection for harsh environments
  • Supports up to 1000 VAC voltage
  • Left side operating mechanism
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
88kW
Rated Operational Current AC21-A (Ie)
200A
Rated Operational Current AC23-A (Ie)
160A
Rated Short Time Withstand Current (Icw)
8000A
Power Loss
3.2W
Special Functions
No
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
82mm
Height
150mm
Weight
2.1kg
Width
216.5mm

Environmental

Pollution Degree
3
IP Rating
IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, DNV GL
