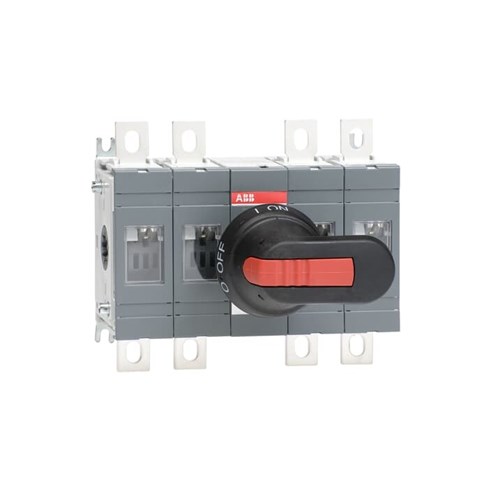

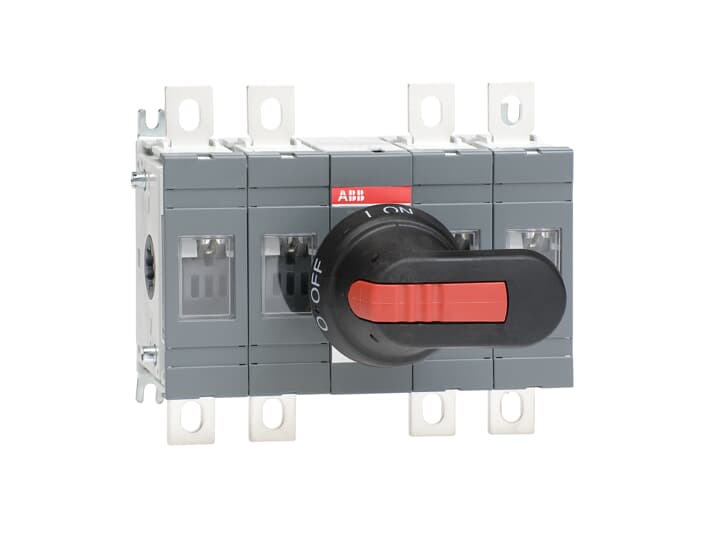

ABB OT160EV22P Base Mount Switch with Handle and Shaft IP00 200A 4-P 1000VAC Main Circuit Black Base Mount

Product Code: OT160EV22P

  • Fuse switch with 200 A rated current
  • Rated voltage up to 1000 VAC
  • Supports up to 4 poles
  • High short circuit rating of 80/100 kA
  • Compact size: 185.5 x 150 x 82.5 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
88kW
Rated Operational Current AC21-A (Ie)
200A
Rated Operational Current AC23-A (Ie)
160A
Rated Short Time Withstand Current (Icw)
8000A
Power Loss
3.2W
Special Functions
No
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
82.5mm
Height
150mm
Weight
1.7kg
Width
185.5mm

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, DNV GL
