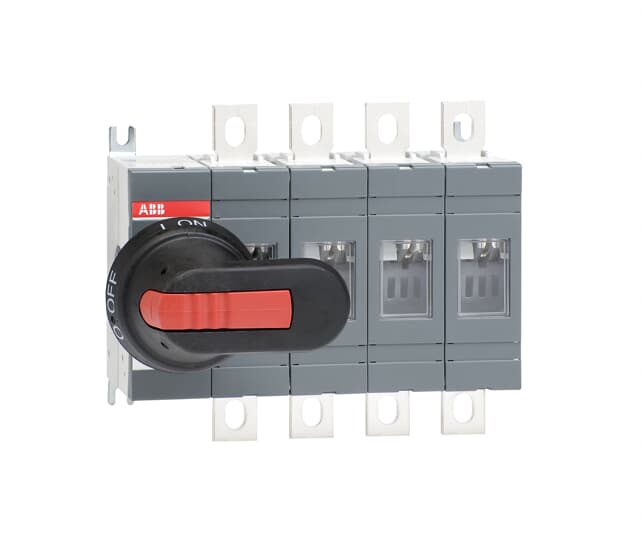

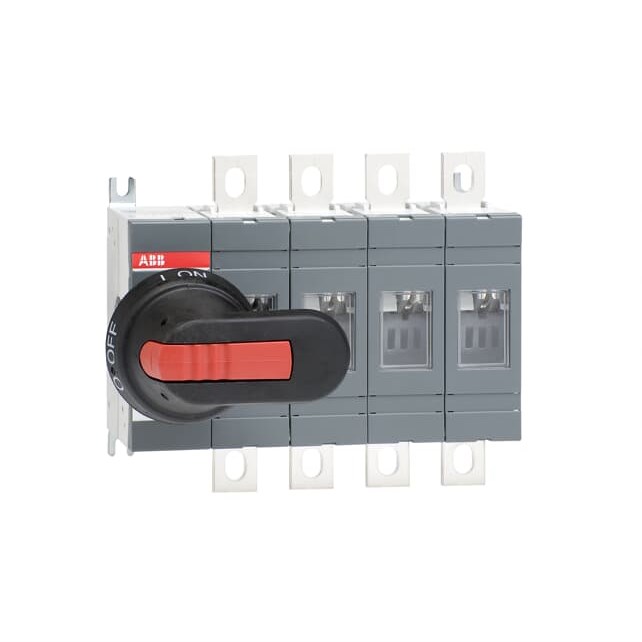

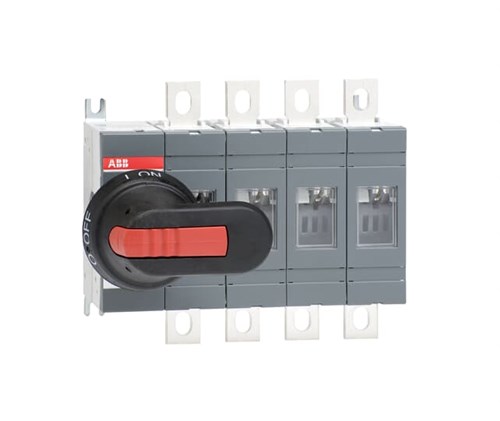

ABB OT160EV04P Base Mount Switch with Handle and Shaft IP00 200A 4-P 1000VAC Main Circuit Black Base Mount

Product Code: OT160EV04P

  • Fuse switch with 200 A rating
  • Compact size: 180.5x150x82.5 mm
  • Handles up to 1000 VAC voltage
  • Front operating mechanism for ease
  • Black finish with IP00 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnectors
Brand
ABB
Series
OT

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 1000V
Rated Operation Power at AC-23, 400 V
88kW
Rated Operational Current AC21-A (Ie)
200A
Rated Operational Current AC22-A (Ie)
200A
Rated Operational Current AC23-A (Ie)
160A
Rated Short Time Withstand Current (Icw)
for 1 s 8kA
Power Loss
at Rated Operating Conditions per Pole 3.2W
Special Functions
No
Mechanical Life
20000
No. of Poles
4P

Mechanical

Padlockable
Yes

Dimensions & Physical Data

Depth
82.5mm
Height
150mm
Weight
1.7kg
Width
180.5mm

Environmental

Pollution Degree
3
Operating Temperature
-25°C to 40°C
IP Rating
Front IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
