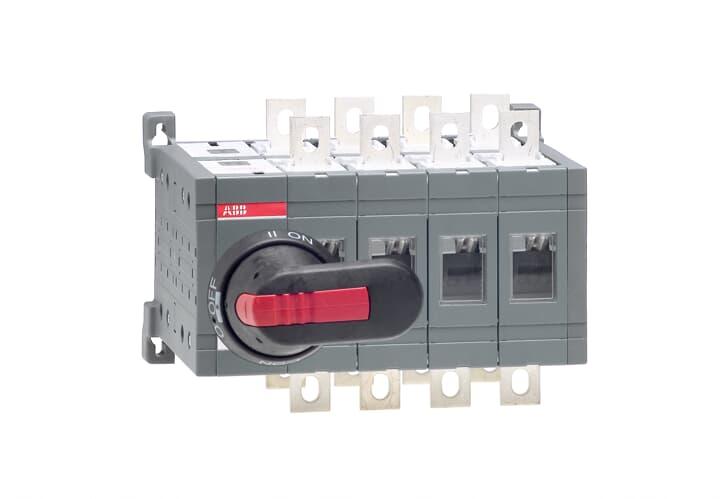

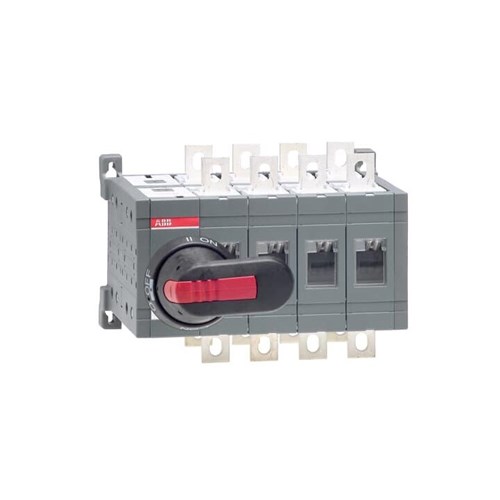

ABB OT160E04CP Changeover Switch 160A 415VAC IP20 4-Hole Front Mount 4-P

Product Code: OT160E04CP

  • Rated for 160 A, suitable for distribution boards
  • Compact size: 205x150x160 mm, weighs 4.1 kg
  • Meets RoHS, REACH, CE, WEEE standards
  • Pistol handle with I-O-II indicators included
  • Padlockable in O-position for added security
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Changeover Switch
Brand
ABB
Series
OT160
Application
Commercial buildings, Industrial plants, Data centers

Electrical

Max. Rated Operation AC Voltage (Ue)
1000 V AC
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Current (In)
160 A
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operating Voltage
415 V
Rated Operation Power at AC-23, 400 V
90 kW
Rated Permanent Current (Iu)
160 A
Rated Permanent Current at AC-21, 400 V
160 A
Rated Frequency
50 - 60 Hz
No. of Poles
4P

Mechanical

Padlock Locking
Padlockable in O-Position

Dimensions

Weight
4.1 kg

Environmental

Rated Surrounding Temperature without Derating
+40°C
Pollution Degree
3
Storage Temperature
-40°C to +70°C
Operating Temperature
-25°C to +55°C
IP Rating
IP20

Standards and Approvals

Standards and Approvals
IEC 60947-3, IEC 60947-1, CSA, CE, RoHS, REACH
