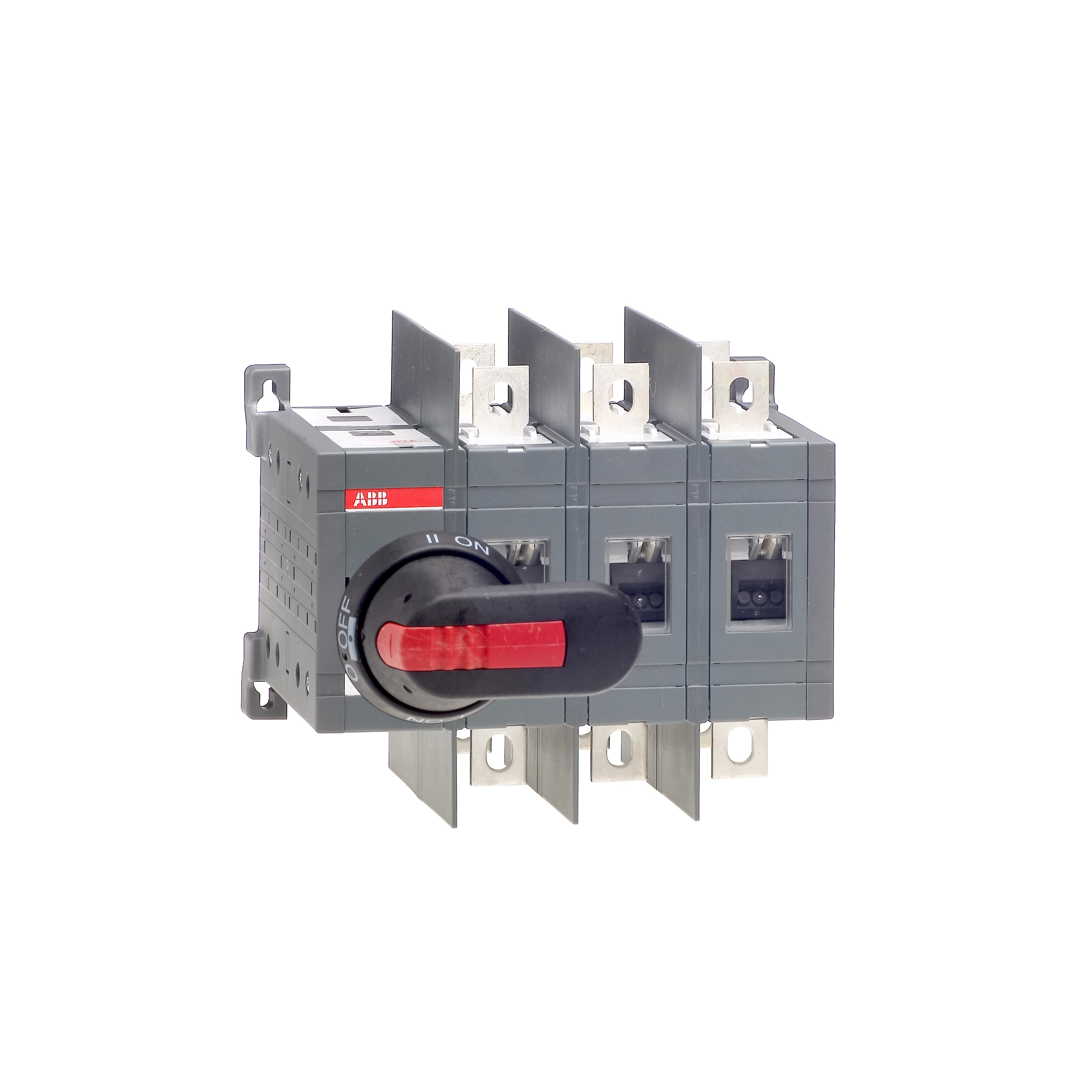

ABB OT160E03WCP Changeover Switch 690A 1000VAC IP20 Base Mount

Product Code: OT160E03WCP

  • Rated for 690 A, suitable for high power applications.
  • Compact design with dimensions: 194x170x160 mm.
  • Complies with RoHS, REACH, CE, and WEEE standards.
  • High voltage withstand: 12 kV impulse rating.
  • IP20 protection ensures safety in controlled environments.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT160E03 WCP
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
90kW
Rated Operational Current AC21-A (Ie)
160A
Rated Operational Current AC22-A (Ie)
160A
Rated Operational Current AC23-A (Ie)
160A
Rated Short Time Withstand Current (Icw)
8000A
Power Loss
2.4W
Transition Type
Open
No. of Poles
3P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
160mm
Height
170mm
Weight
2.68kg
Width
194mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, DNV
