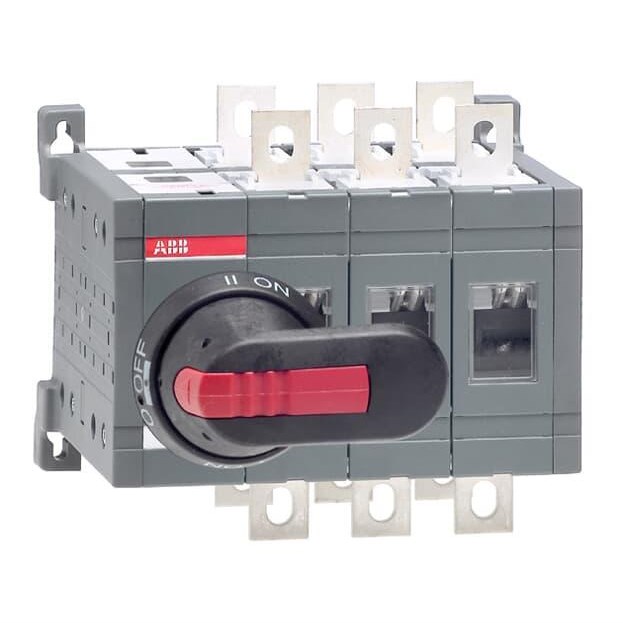

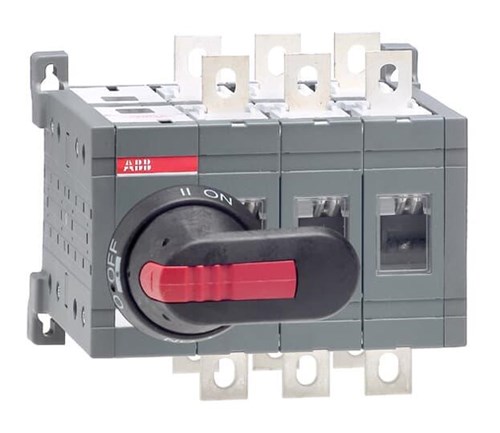

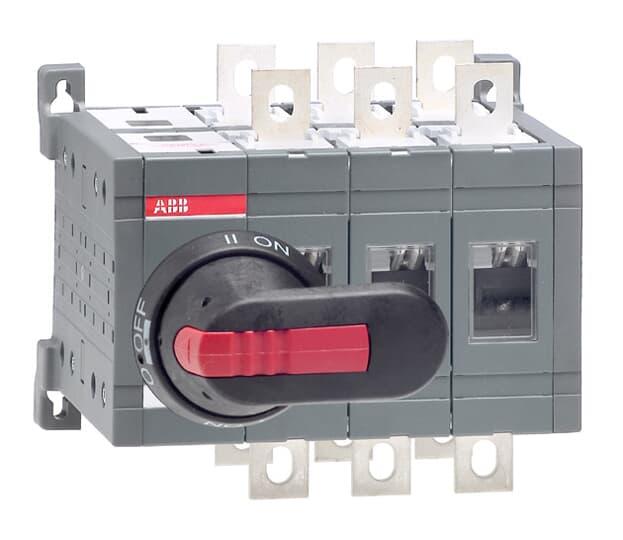

ABB OT160E03CP Changeover Switch 160A 415VAC IP20 4-Hole Front Mount 3-P

Product Code: OT160E03CP

  • Rated Current: 160 A
  • Voltage Rating: 415 VAC
  • Interlockable & Padlockable design
  • RoHS, REACH, CE, WEEE compliant
  • Includes handle and shaft
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT160E03CP
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
90kW
Rated Operational Current AC21-A (Ie)
160A
Rated Operational Current AC22-A (Ie)
160A
Rated Operational Current AC23-A (Ie)
160A
Rated Short Time Withstand Current (Icw)
8000A
Power Loss
2.4W
Transition Type
Open
No. of Poles
3P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
160mm
Height
150mm
Weight
3.1kg
Width
170mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, DNV
