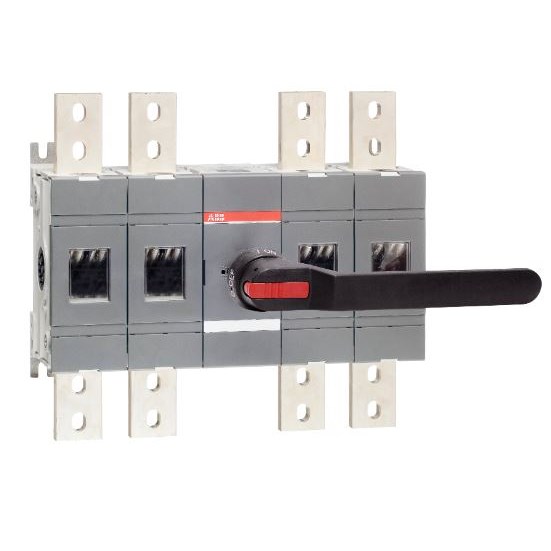

ABB OT1600E22P Disconnector Switch 1600A 4 1000VAC

Product Code: OT1600E22P

  • Base mount load break switch, 1600 A capacity
  • Compact size: 414.5 mm wide, 372 mm high, 167 mm deep
  • High withstand current of 50 kA
  • Suitable for up to 1000 VAC and 710 kW
  • Interlockable for enhanced safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnectors
Brand
ABB
Series
OT

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 1000V
Rated Operation Power at AC-23, 400 V
710kW
Rated Operational Current AC21-A (Ie)
1600A
Rated Operational Current AC22-A (Ie)
1600A
Rated Operational Current AC23-A (Ie)
1250A
Rated Short Time Withstand Current (Icw)
for 1 s 50kA
Power Loss
at Rated Operating Conditions per Pole 48W
Special Functions
No
Mechanical Life
6000
No. of Poles
4P

Dimensions & Physical Data

Depth
167mm
Height
372mm
Weight
22.3kg
Width
414.5mm

Environmental

Pollution Degree
3
Operating Temperature
-25°C to 40°C
IP Rating
Front IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3
