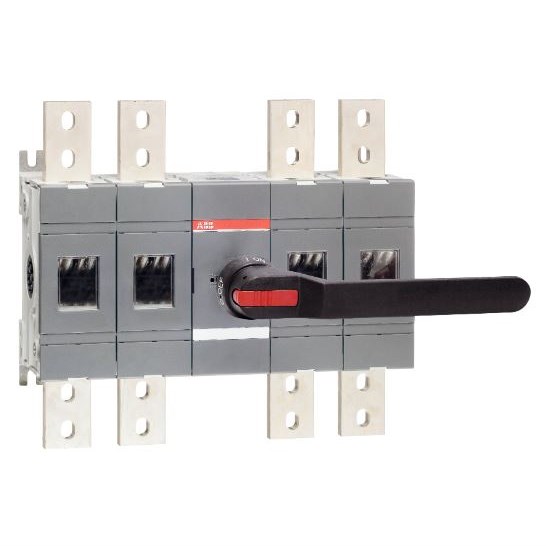

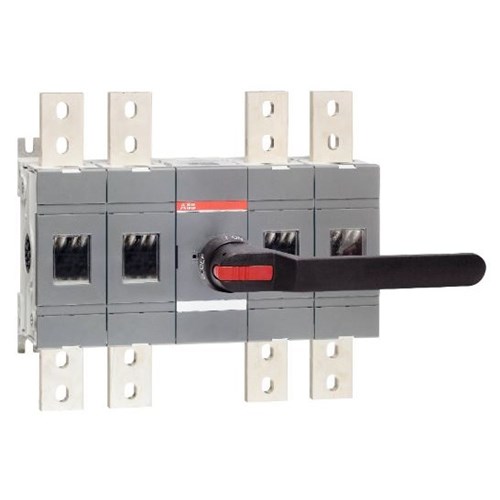

ABB OT1600E22P-135 Disconnector Switch 1500 V 4-P Base Mount IP00

Product Code: OT1600E22P-135

  • Suitable for distribution board installation
  • Rated voltage of 1500 V
  • Base mount with IP00 protection
  • Long turning handle in black
  • Complies with IEC 60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Disconnector Switch
Brand
ABB
Series
OT
Application
Utilities, infrastructure, manufacturing

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1500V
Rated Operating Voltage
1500V DC
Rated Short Time Withstand Current (Icw)
for 0.3 s 36 / 50 / 65kA
Power Loss
per pole 48W; total 192W
Rated Current (In)
1600A
Special Functions
No
Mechanical Life
600
No. of Poles
4P

Dimensions & Physical Data

Depth
148.5mm
Height
372mm
Weight
22.3kg
Width
414.5mm

Environmental

Pollution Degree
3
IP Rating
Front IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, -3

Accessories & Additional Information

Included Components
Pistol handle, shaft and terminal bolt kit
