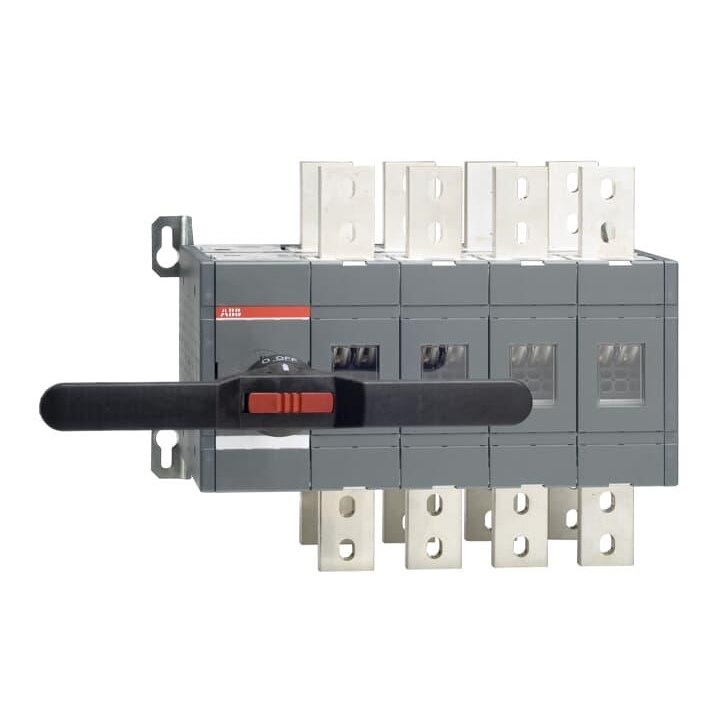

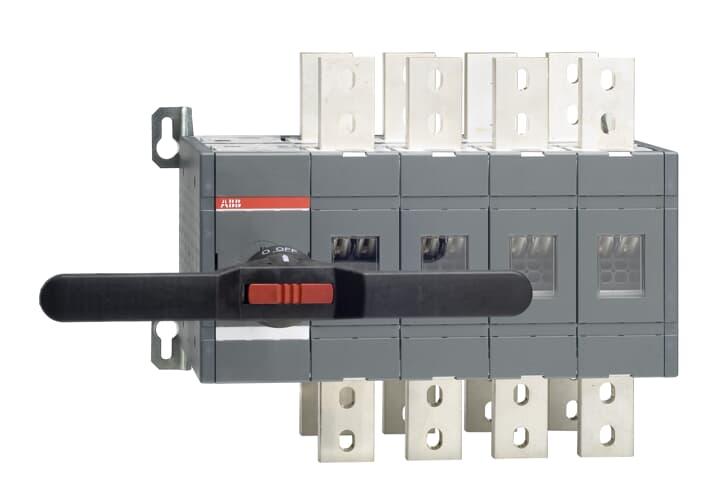

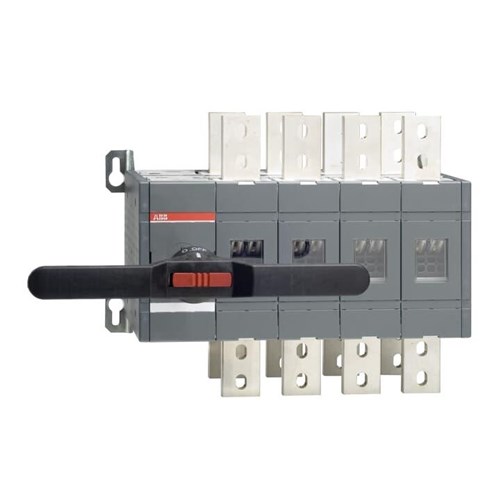

ABB OT1600E04CP Changeover Switch 1600A 415VAC IP20 4-Hole Front Mount 4-P

Product Code: OT1600E04CP

  • Rated current of 1600 A
  • Suitable for distribution boards
  • RoHS, REACH, CE, WEEE certified
  • 4-pole with IP20 protection
  • Interlockable and padlockable
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT1600E04CP
Application
Manual change-over switch

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
710kW
Rated Operational Current AC21-A (Ie)
1600A
Rated Operational Current AC22-A (Ie)
1600A
Rated Operational Current AC23-A (Ie)
1600A
Rated Short Time Withstand Current (Icw)
50000A
Power Loss
48W
Transition Type
Open
No. of Poles
4P

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
309mm
Height
372mm
Weight
48kg
Width
480mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE, DNV
