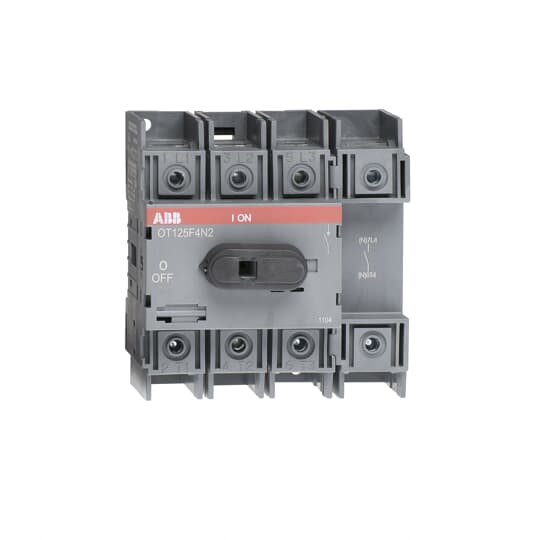

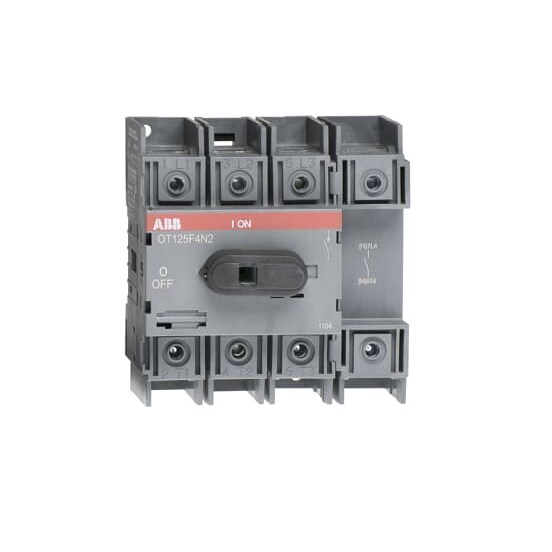

ABB OT125F4N2 Switch-Disconnector IP20 100A 4 750VAC Main Circuit Knob Handle Base Mount

Product Code: OT125F4N2

  • Fuse switch with 100 A rated current
  • Compact size: 96.5 mm width, 100 mm height
  • High impulse withstand voltage of 8 kV
  • Rated for both 22 kW and 45 kW power
  • Screw clamp terminals for secure connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
750V
Rated Operation Power at AC-23, 400 V
45kW
Rated Operational Current AC21-A (Ie)
125A
Rated Operational Current AC22-A (Ie)
125A
Rated Short Time Withstand Current (Icw)
2500A
Power Loss
6.3W
Special Functions
No
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
74mm
Height
100mm
Weight
0.49kg
Width
96.5mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, cULus
