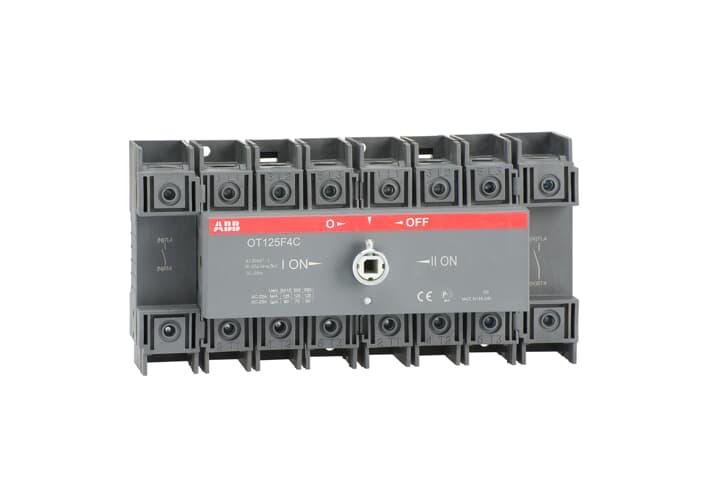

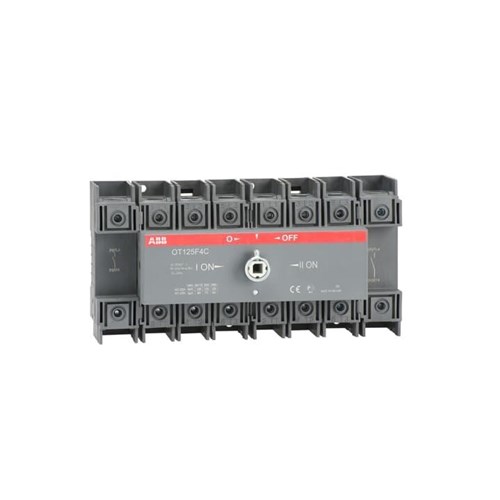

ABB OT125F4C Changeover Switch 125A 415VAC IP20 4-Hole Front Mount 4-P

Product Code: OT125F4C

  • Rated for 125 A and 415 VAC
  • Complies with UL, IEC, RoHS standards
  • 4-pole design with IP20 protection
  • Front operation with screw clamp terminals
  • Interlockable for added safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Changeover Switch
Brand
ABB
Series
OT125
Application
Commercial buildings, Industrial plants, Data centers

Electrical

Max. Rated Operation AC Voltage (Ue)
750 V AC
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Current (In)
125 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
750 V
Rated Operating Voltage
415 V
Rated Operation Power at AC-23, 400 V
45 kW
Rated Operational Current AC21-A (Ie)
125 A
Rated Operational Current AC22-A (Ie)
125 A
Rated Operational Current AC23-A (Ie)
90 A
Rated Permanent Current (Iu)
125 A
Rated Permanent Current at AC-21, 400 V
125 A
Rated Short Time Withstand Current (Icw)
2.5 kA/1s
Power Loss
6.3 W/Pole
Rated Frequency
50 - 60 Hz
Transition Type
Open
No. of Poles
4P

Dimensions

Depth
86 mm
Height
100 mm
Weight
1.4 kg
Width
193 mm

Environmental

Rated Surrounding Temperature without Derating
+40°C
Pollution Degree
3
Storage Temperature
-40°C to +70°C
Operating Temperature
-25°C to +55°C
IP Rating
IP20

Standards and Approvals

Standards and Approvals
IEC 60947-3, IEC 60947-1, CSA, CE, RoHS, REACH
