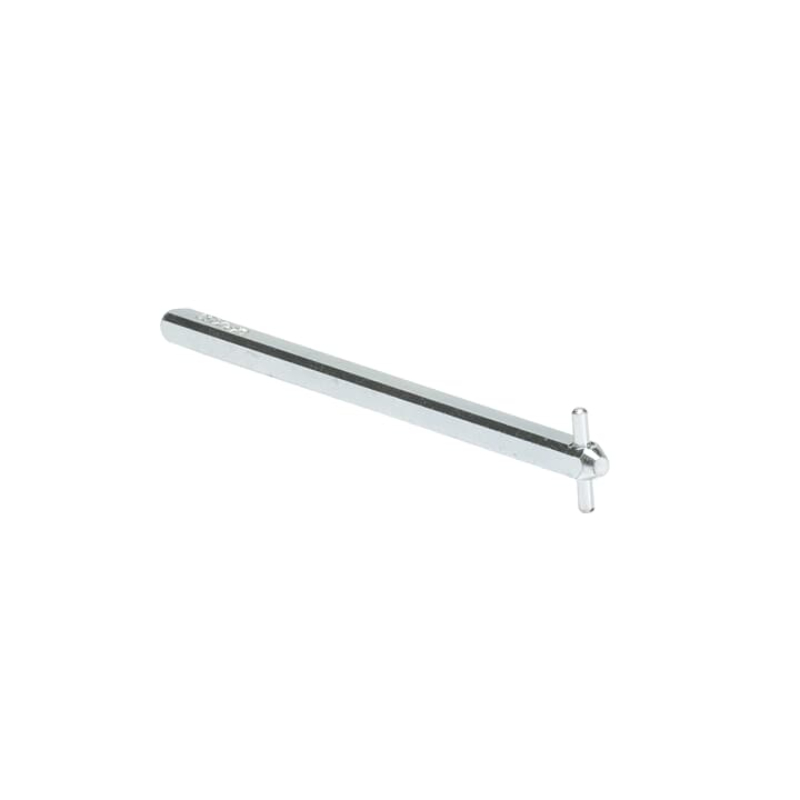

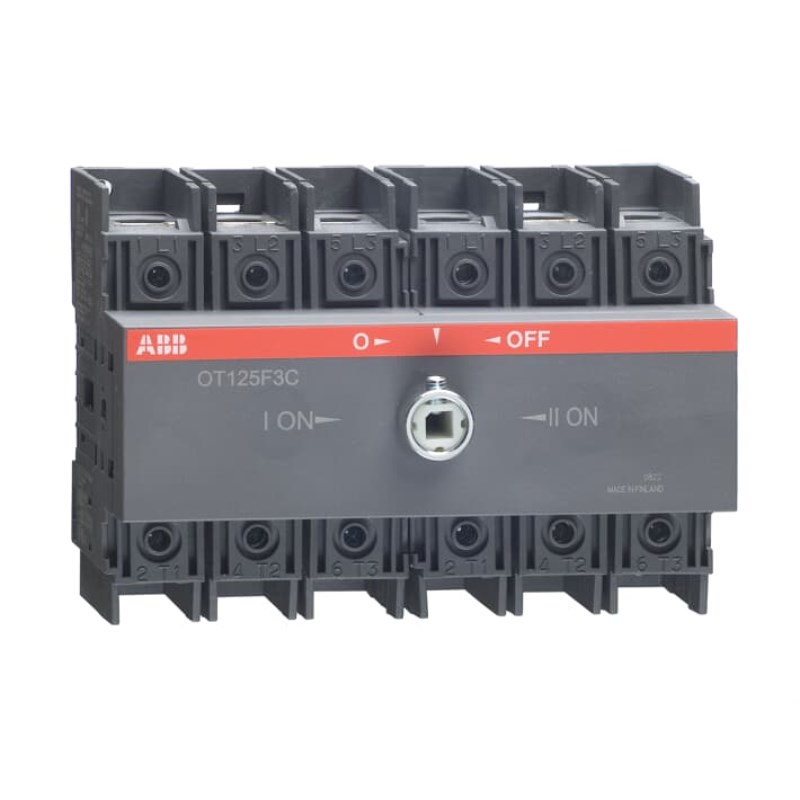

ABB CHANGEOVER SWITCH KIT 125A 3P/3P BASE MOUNT C/W SHAFT, HANDLE IP65 UP TO 70MM2 CABLE

Product Code: OT125F3CP-K

  • Rated for 125A, suitable for high current applications
  • Operates at 750 VAC/VDC for versatile use
  • Three-pole design for balanced power distribution
  • IP20/IP65 protection ensures durability in harsh conditions

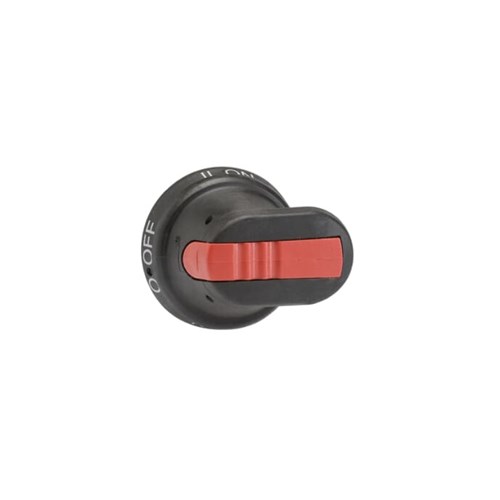

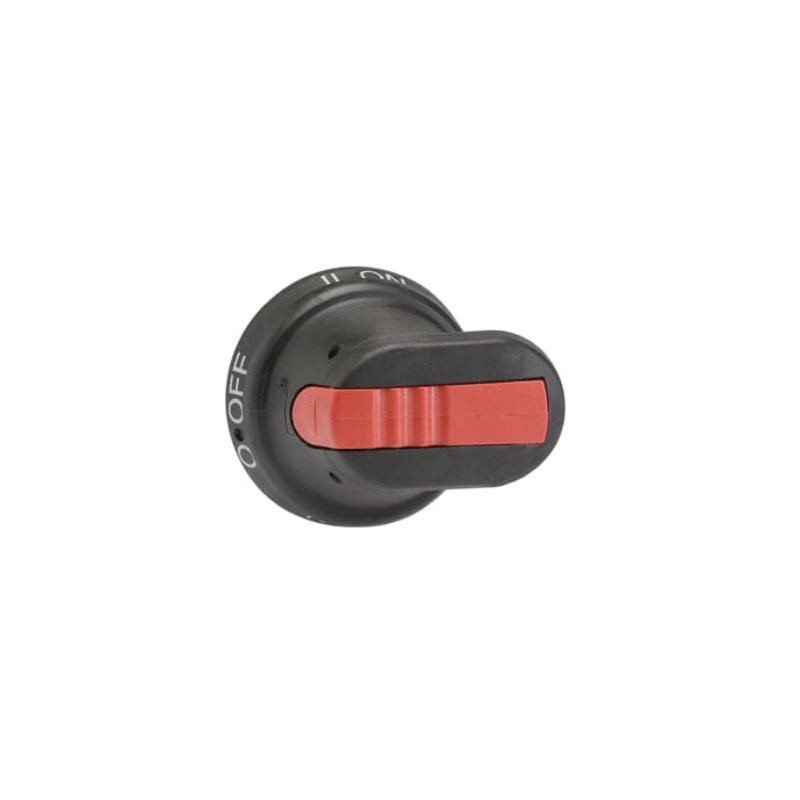

  • Pistol grip handle offers easy manual operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch Kit
Brand
ABB
Series
OT

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
750V
Rated Operating Voltage
Main Circuit 750V
Rated Operation Power at AC-23, 400 V
45kW
Rated Operational Current AC21-A (Ie)
125A
Rated Operational Current AC22-A (Ie)
125A
Rated Operational Current AC23-A (Ie)
90A
Rated Short Time Withstand Current (Icw)
for 1 s 2.5kA rms
Power Loss
at Rated Operating Conditions per Pole 6.3W
Rated Current (In)
125A
Transition Type
Open
Mechanical Life
6000
No. of Poles
3P

Dimensions & Physical Data

Depth
86mm (Only the switch)
Height
105mm (Only the switch)
Weight
0.9kg (Only the switch)
Width
140mm (Only the switch)

Environmental

Pollution Degree
3
Operating Temperature
-25°C to 40°C
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
UL 98 / IEC 60947-3
