Specifications

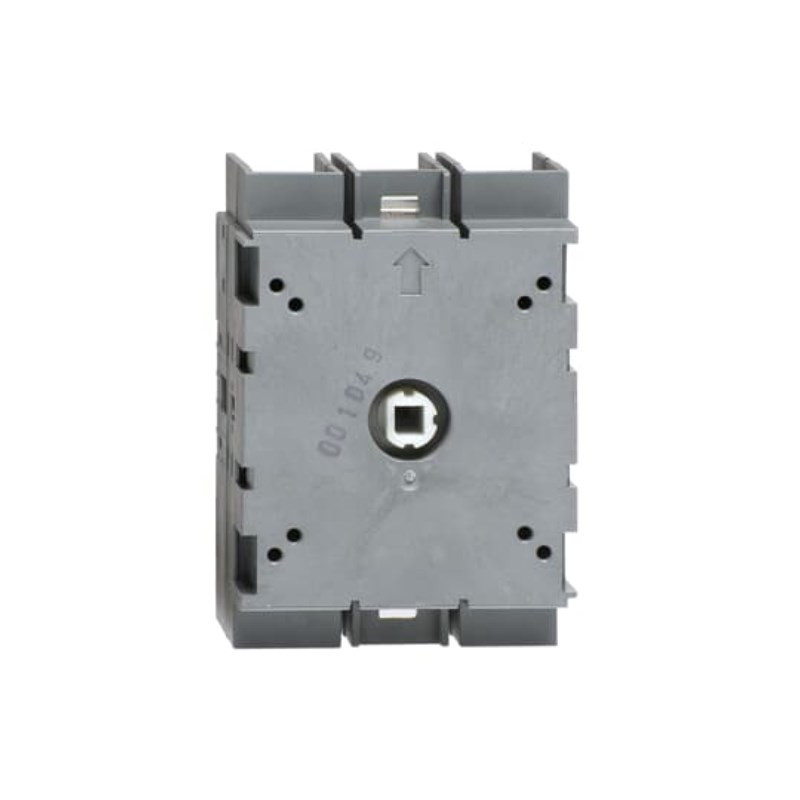

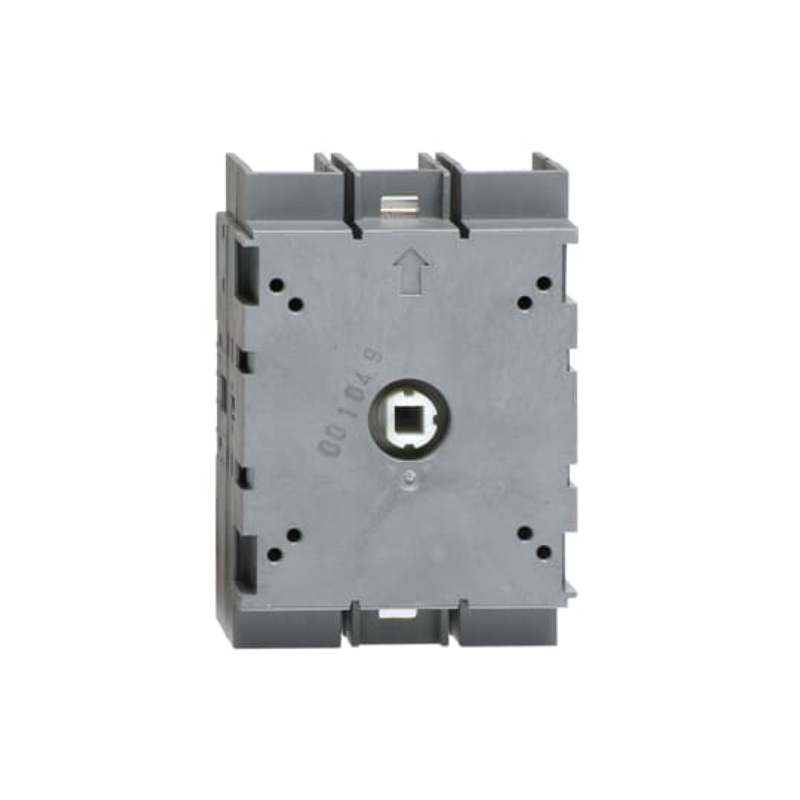

Product Type Load Break Switch Kit	Brand ABB	Series OT
Application Manufacturing, commercial buildings, infrastructure

Position of Line Terminals Top In - Bottom Out Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 8kV	Rated Insulation Voltage (Ui) 750V
Rated Operating Voltage Main Circuit 750V	Rated Operational Current AC21-A (Ie) 125A	Rated Operational Current AC22-A (Ie) 125A
Rated Operational Current AC23-A (Ie) 90A	Rated Short Time Withstand Current (Icw) for 1 s 2.5kA	Power Loss at Rated Operating Conditions per Pole 6.3W
Rated Current (In) 125A	Special Functions No	Mechanical Life 20000
No. of Poles 3P

Depth 74mm	Height 100mm	Weight 0.36kg
Width 70mm

Pollution Degree

IP Rating

Front IP20

Standards and Approvals

IEC 60947-3

Included Components

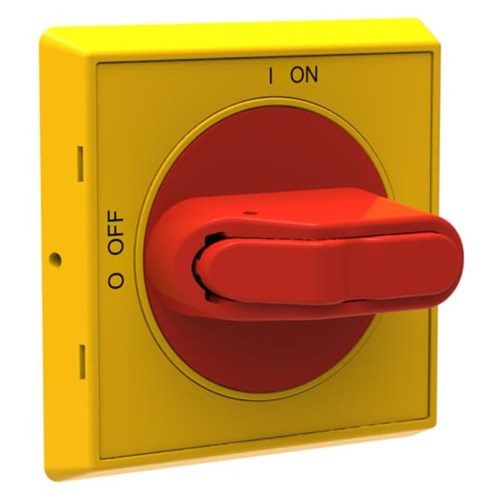

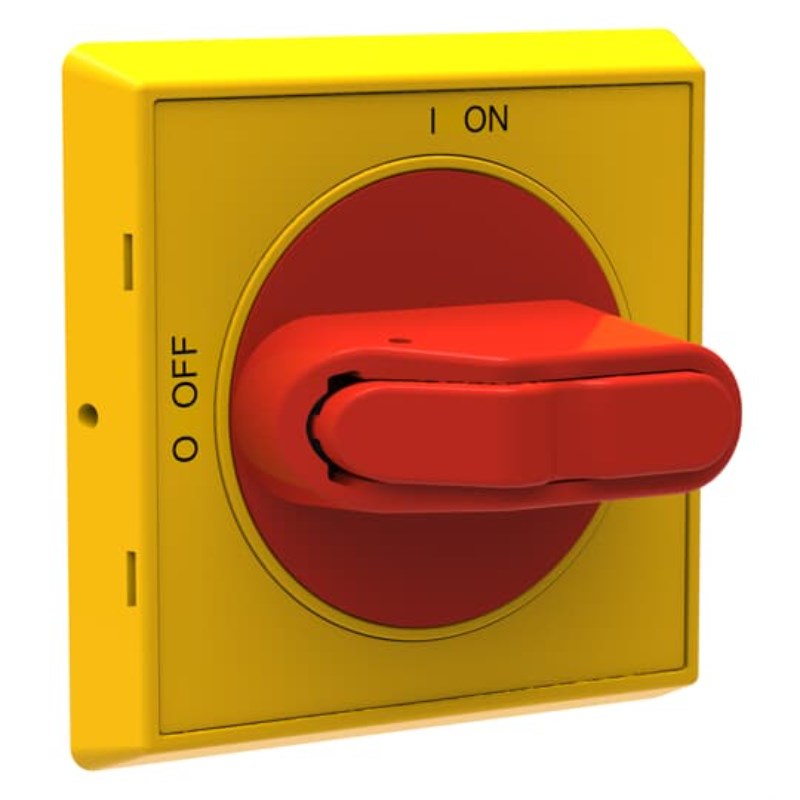

Handle and Shaft

LBS 125A 3P DOOR MOUNT ABB KIT C/W R/Y DOOR HANDLE 4 HOLE FIX IP65, UP TO 70MM2 CABLE
