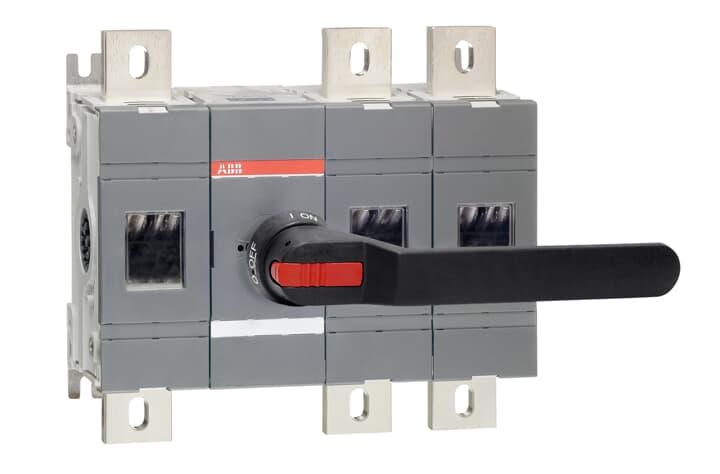

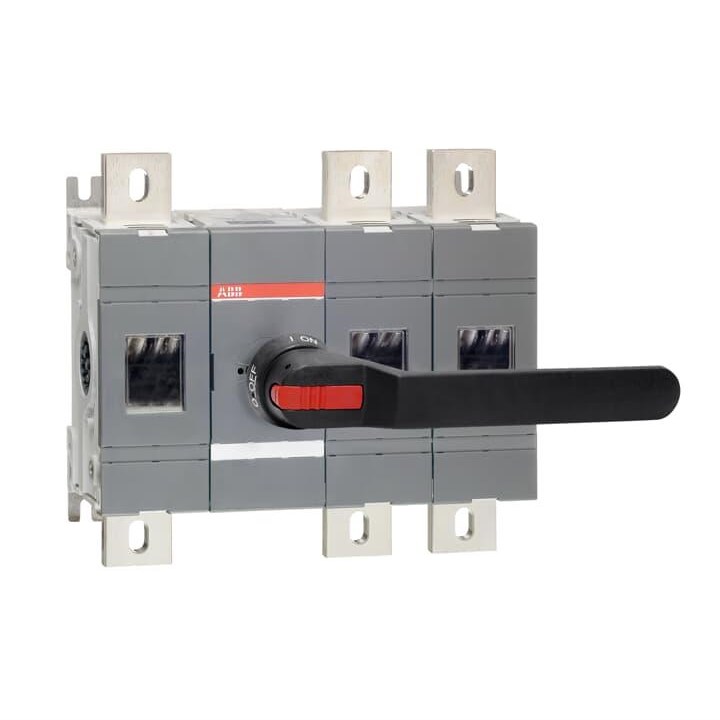

ABB OT1250E12P Disconnector Switch IP65 1250A 3 1000VAC Black Pistol Handle Base Mount

Product Code: OT1250E12P

  • Base mount load break switch, 1250 A rated current
  • Complies with IEC 60947-3 standards
  • IP65 protection, suitable for distribution boards
  • Rated voltage of 1000 VAC, impulse withstand 12 kV
  • Includes pistol handle and shaft for operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch - Disconnector
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
1000V
Rated Operation Power at AC-23, 400 V
710kW
Rated Operational Current AC21-A (Ie)
1250A
Rated Operational Current AC22-A (Ie)
1250A
Rated Operational Current AC23-A (Ie)
1250A
Rated Short Time Withstand Current (Icw)
50000A
Power Loss
29W
Special Functions
No
Mechanical Life
6000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
145.5mm
Height
306mm
Weight
15.6kg
Width
334.5mm

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60335-2-40, CE, DNV GL
