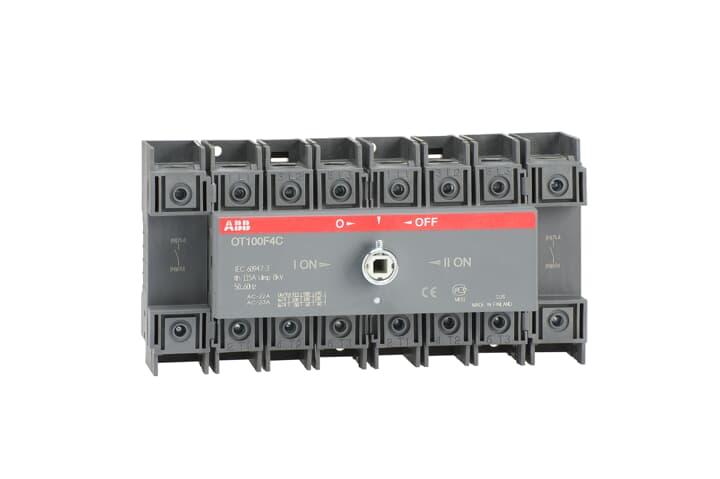

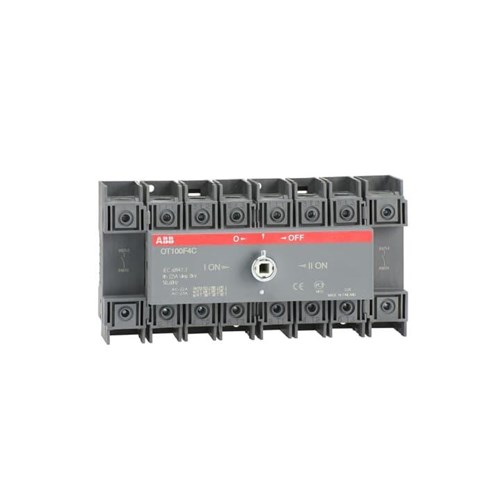

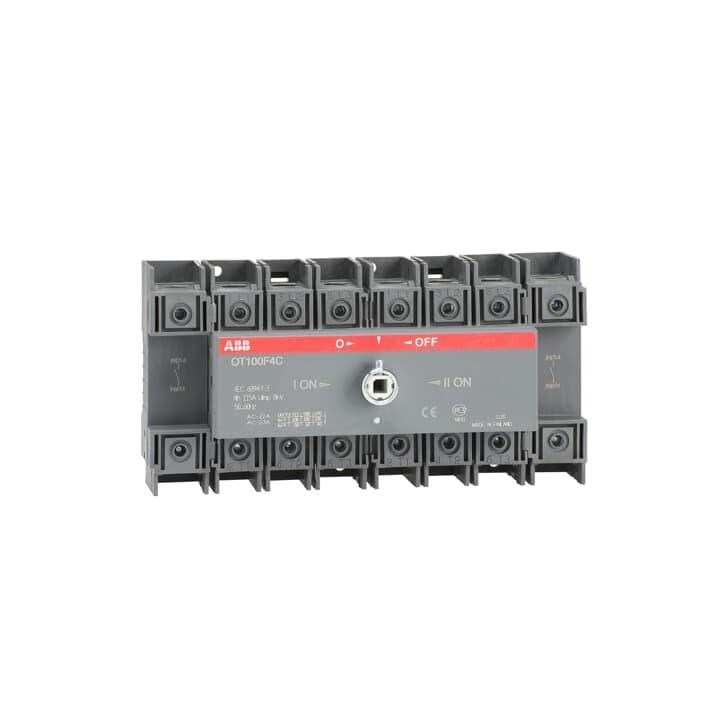

ABB OT100F4C Changeover Switch IP20 100A 4 415VAC 4-Hole Front Mount

Product Code: OT100F4C

  • Rated for 100 A, ideal for heavy-duty use
  • Compact size: 193x100x86 mm
  • Suitable for distribution board install
  • Front operation with screw clamp terminals
  • Interlockable design for added safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT100
Application
Commercial buildings, Industrial plants, Data centers

Electrical

Max. Rated Operation AC Voltage (Ue)
750V AC
Rated Operating Voltage
400V to 415V
Rated Operation Power at AC-23, 400 V
0.037kW
Rated Permanent Current at AC-21, 400 V
100A
Rated Uninterrupted Current (Iu)
100A
Rated Current (In)
100A
No. of Poles
4P

Dimensions & Physical Data

Weight
1.18kg

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60947-1, CSA, CE, RoHS, REACH
