Specifications

Product Type

Change - Over Switch Kit

Brand

ABB

Series

Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 8kV	Rated Insulation Voltage (Ui) 750V
Rated Operating Voltage Main Circuit 750V	Rated Operation Power at AC-23, 400 V 37kW	Rated Operational Current AC21-A (Ie) 100A
Rated Operational Current AC22-A (Ie) 100A	Rated Operational Current AC23-A (Ie) 80A	Rated Short Time Withstand Current (Icw) for 1 s 2.5kA rms
Power Loss at Rated Operating Conditions per Pole 4W	Rated Current (In) 100A	Transition Type Open
Mechanical Life 6000	No. of Poles 3P

Depth 86mm (Only the switch)	Height 100mm (Only the switch)	Weight 0.9kg (Only the switch)
Width 140mm (Only the switch)

Pollution Degree

Operating Temperature

-25°C to 40°C

IP Rating

Front IP20

Standards and Approvals

UL 98 / IEC 60947-3

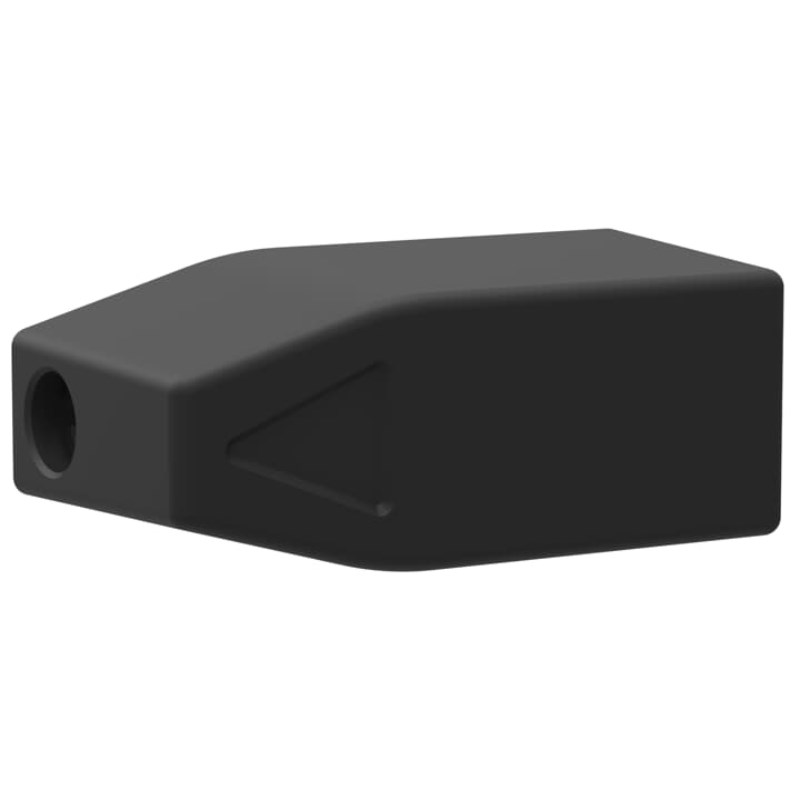

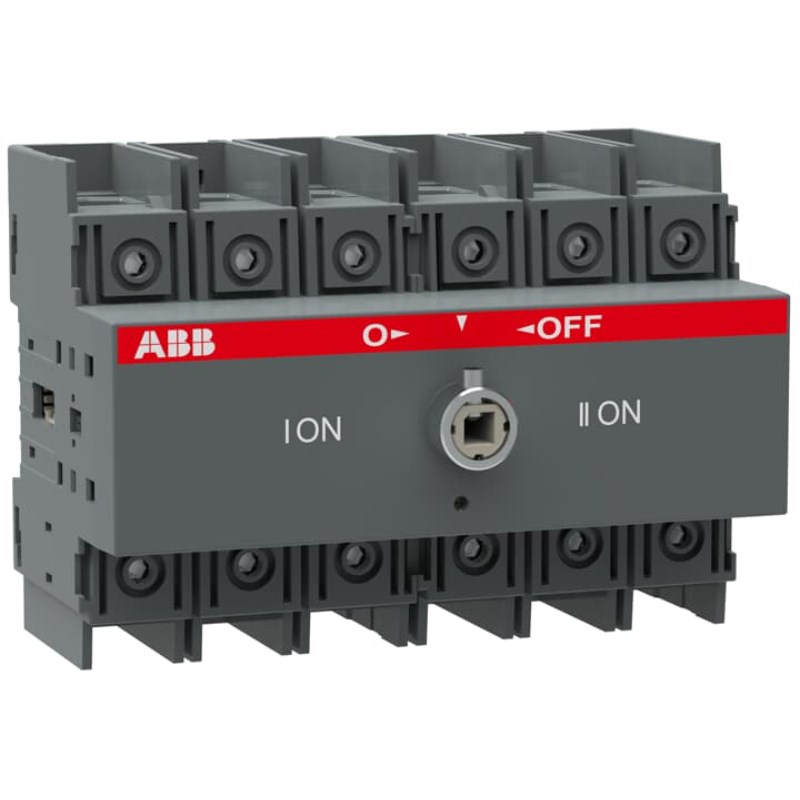

ABB CHANGEOVER SWITCH KIT 100A 3P/3P DIN PROFILE C/W NON PAD LOCK HANDLE UP TO 70MM2 CABLE
