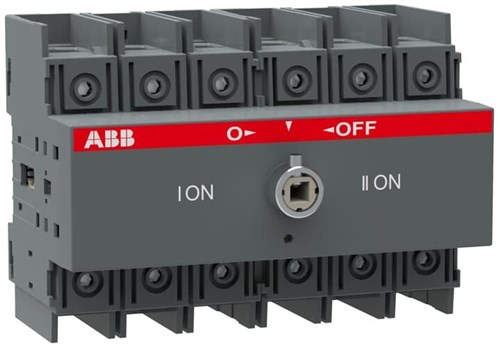

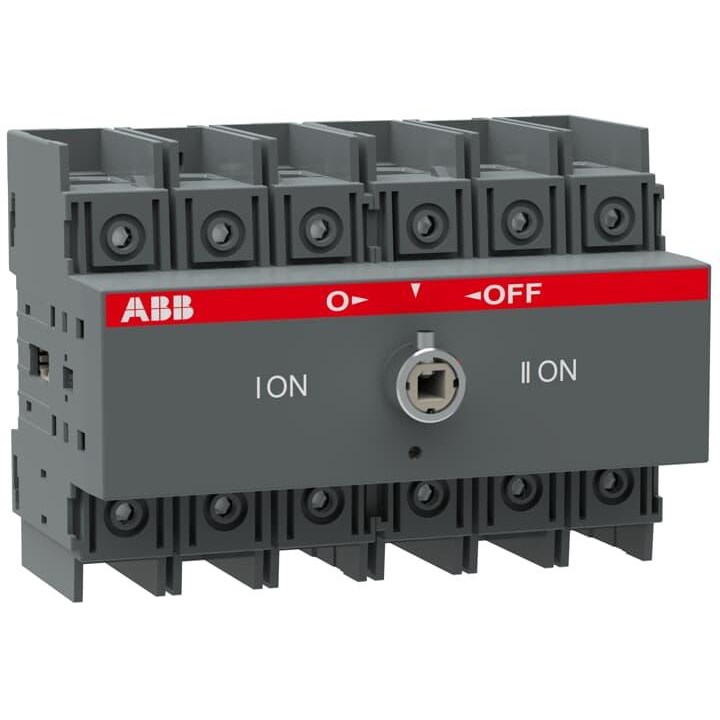

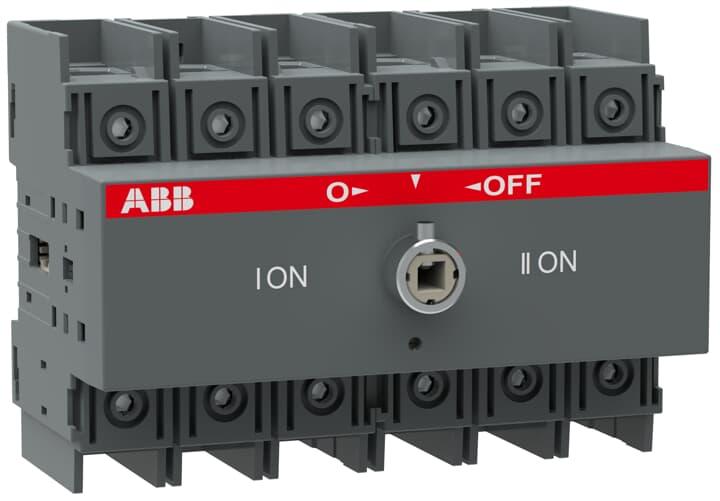

ABB OT100F3C Changeover Switch IP20 100A 3 415VAC 4-Hole Front Mount

Product Code: OT100F3C

  • Rated current of 100 A for robust performance
  • Compact size: 140x100x86 mm, easy to install
  • IP20 protection suitable for distribution boards
  • Operates at 415 VAC with 3 poles
  • Front mount with screw clamp terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB
Series
OT100
Application
Commercial buildings, Industrial plants, Data centers

Electrical

Max. Rated Operation AC Voltage (Ue)
750V AC
Rated Operating Voltage
400V to 415V
Rated Operation Power at AC-23, 400 V
0.037kW
Rated Permanent Current at AC-21, 400 V
100A
Rated Uninterrupted Current (Iu)
100A
Rated Current (In)
100A
No. of Poles
3P

Dimensions & Physical Data

Weight
0.9kg

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3, IEC 60947-1, CSA, CE, RoHS, REACH
