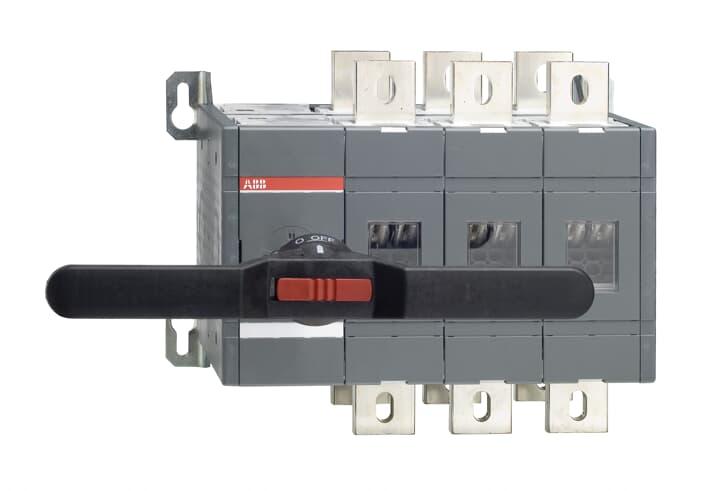

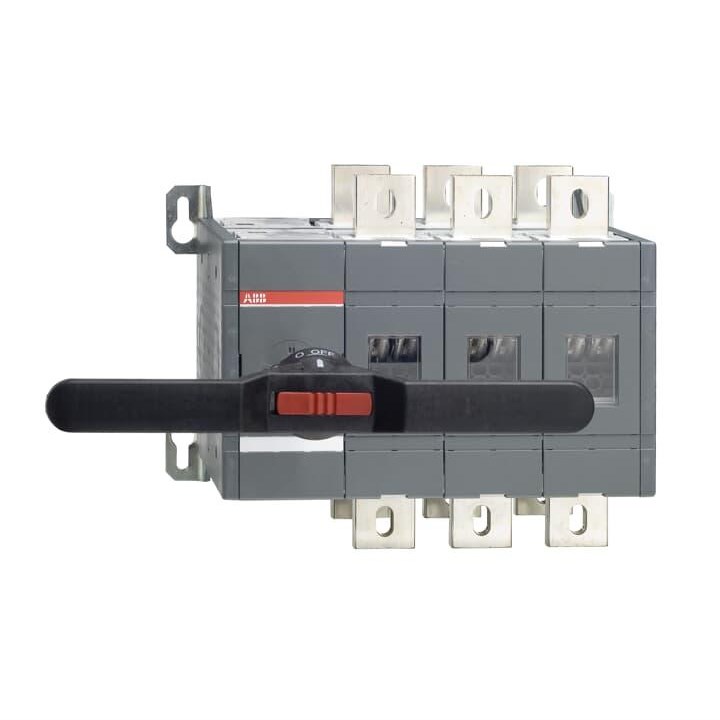

ABB OT1000E03CP Changeover Switch IP20 1000A 3 415VAC Pistol Handle 4-Hole Front Mount

Product Code: OT1000E03CP

  • Rated current of 1000 A for high capacity
  • Suitable for distribution board installation
  • IP20 protection and NEMA 1 rating
  • Front operation with pistol handle included
  • Interlockable for added safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Change - Over Switch
Brand
ABB

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operating Voltage
1000 V
Rated Operation Power at AC-23, 400 V
560000 W
Rated Operation Power at AC-31b (Ie)
1000 A
Rated Operational Current AC21-A (Ie)
1000 A
Rated Operational Current AC22-A (Ie)
1000 A
Rated Operational Current AC23-A (Ie)
1000 A
Rated Short Time Withstand Current (Icw)
50000 A
Power Loss
19 W
Rated Current (In)
1000 A
Transition Type
Open
No. of Poles
3

Mechanical

Padlockable
Handle padlockable in the 0-position

Dimensions & Physical Data

Depth
309 mm
Height
306 mm
Weight
48000 g
Width
400 mm

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
CE, DNV
