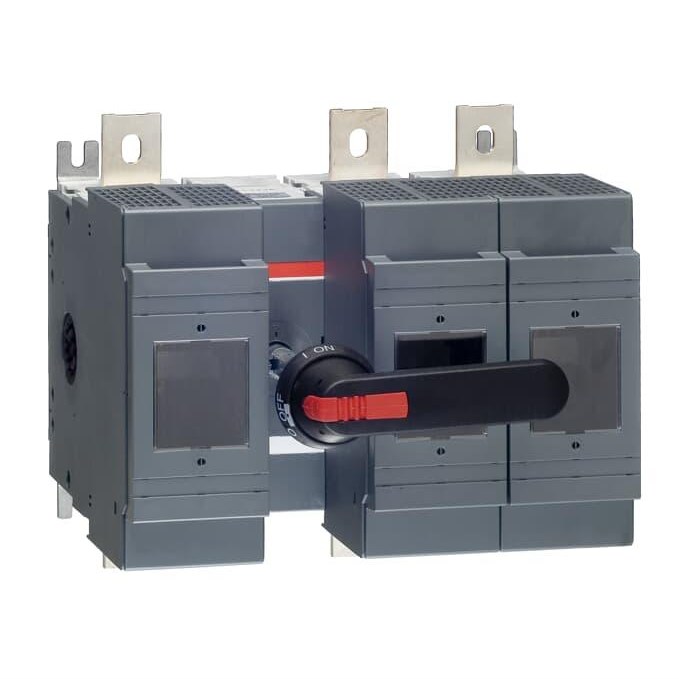

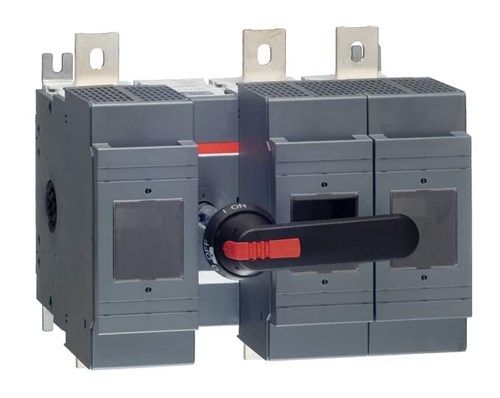

ABB OS800B12P Switch Fuses 3-P 800A For: C1-C3 Shape 1000VAC 710 kW Lug Terminal IP65

Product Code: OS800B12P

  • Rated for 800 A current
  • Complies with IEC 60947-3, RoHS, REACH
  • High protection: IP65 rated
  • Suitable for C1-C3 shape busbar mounting
  • Includes black pistol handle and shaft
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch
Brand
ABB
Series
OS
Application
Utilities, infrastructure, heavy industry

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 690V AC
Rated Operation Power at AC-23, 400 V
450kW
Rated Operational Current AC21-A (Ie)
800A
Rated Operational Current AC22-A (Ie)
800A
Rated Operational Current AC23-A (Ie)
800A
Rated Short Time Withstand Current (Icw)
for 1 s 18kA rms
Power Loss
Total 225W
Rated Current (In)
Main Circuit 800A
Fuse Size
C1-C3
No. of Poles
3P

Dimensions & Physical Data

Depth
233mm
Height
306mm
Weight
13.5kg
Width
341mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Accessories & Additional Information

Included Components
Pistol handle and Shaft
