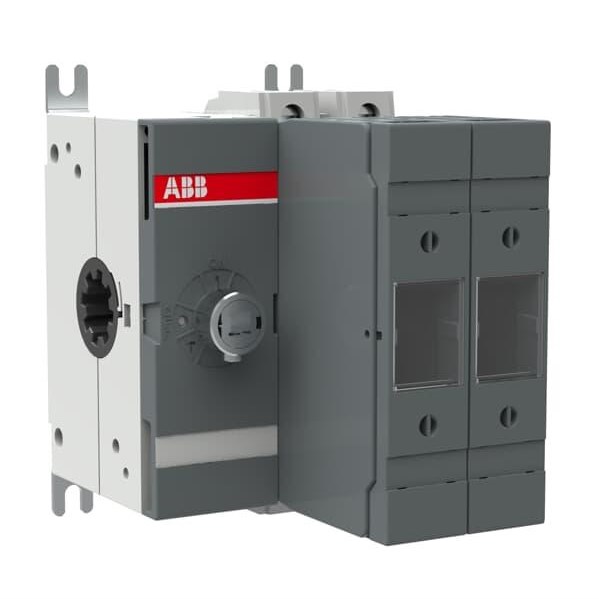

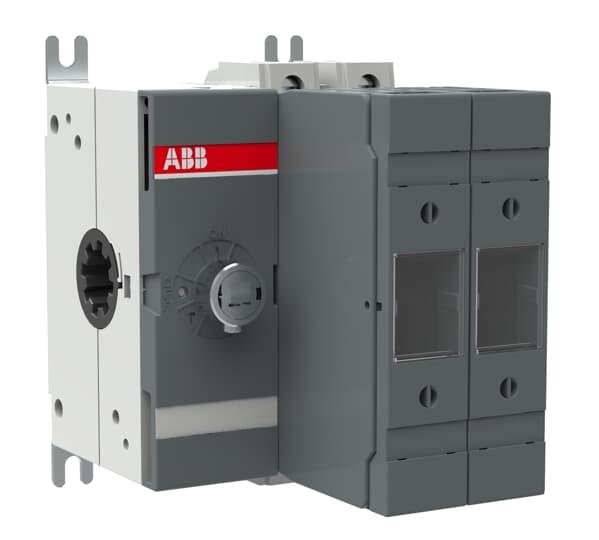

ABB OS63GD02 Switch Fuses 2-P NH000 Fuse 63A For: NH000 1000VAC 55 kW Screw Terminal

Product Code: OS63GD02

  • 63 A rated current for robust performance
  • Complies with IEC 60947-3, RoHS, REACH, CE
  • Withstands up to 12 kV impulse voltage
  • Suitable for NH000 base on busbar mount
  • Handles short circuit currents up to 80 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch
Brand
ABB
Series
OS
Application
Manufacturing, utilities, infrastructure

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 690V AC
Rated Operation Power at AC-23, 400 V
30kW
Rated Operational Current AC21-A (Ie)
63A
Rated Operational Current AC22-A (Ie)
63A
Rated Operational Current AC23-A (Ie)
63A
Rated Short Time Withstand Current (Icw)
for 1 s 2.5kA rms
Power Loss
at Rated Current 2W
Rated Current (In)
Main Circuit 63A
Fuse Size
NH000
No. of Poles
2P

Dimensions & Physical Data

Depth
121mm
Height
112mm
Weight
0.725kg
Width
91mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Accessories & Additional Information

Included Components
Handle and shaft not included
