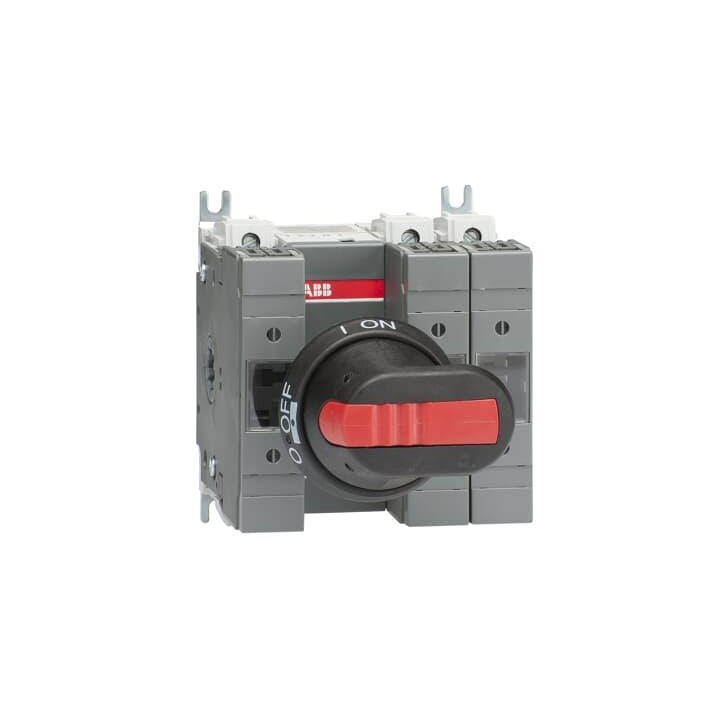

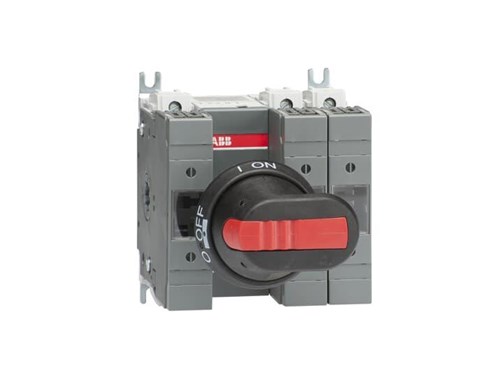

ABB OS63GB12P Switch Fuses 3-P 63A For: A2/A3 Shape 1000VAC 55 kW Screw Terminal IP65

Product Code: OS63GB12P

  • Rated for 63 A and 1000 VAC
  • Robust IP65 protection rating
  • Withstands short circuit up to 80 kA
  • Includes black plastic pistol handle
  • Complies with IEC, RoHS, REACH standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch
Brand
ABB
Series
OS
Application
Manufacturing, utilities, infrastructure

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 690V AC
Rated Operation Power at AC-23, 400 V
30kW
Rated Operational Current AC21-A (Ie)
63A
Rated Operational Current AC22-A (Ie)
63A
Rated Operational Current AC23-A (Ie)
63A
Rated Short Time Withstand Current (Icw)
for 1 s 2.5kA rms
Power Loss
at Rated Operating Conditions per Pole 7.5W
Rated Current (In)
Main Circuit 63A
Fuse Size
A2-A3
No. of Poles
3P

Dimensions & Physical Data

Depth
109mm
Height
125mm
Weight
1.18kg
Width
112mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Accessories & Additional Information

Included Components
Pistol handle and Shaft
