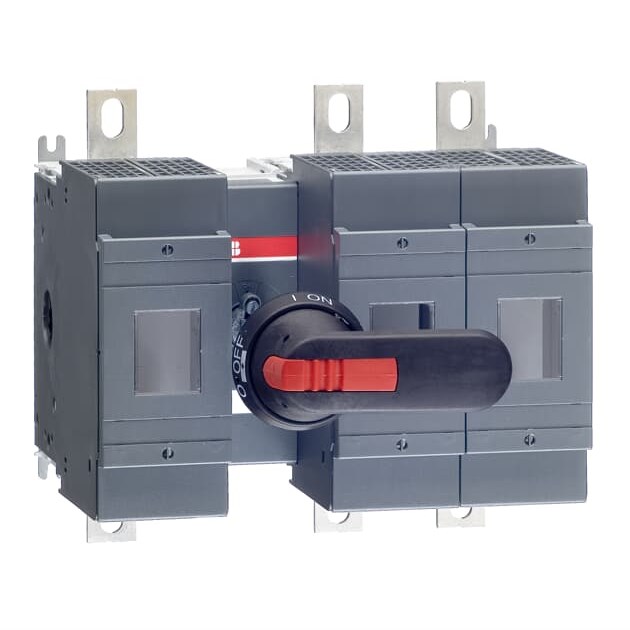

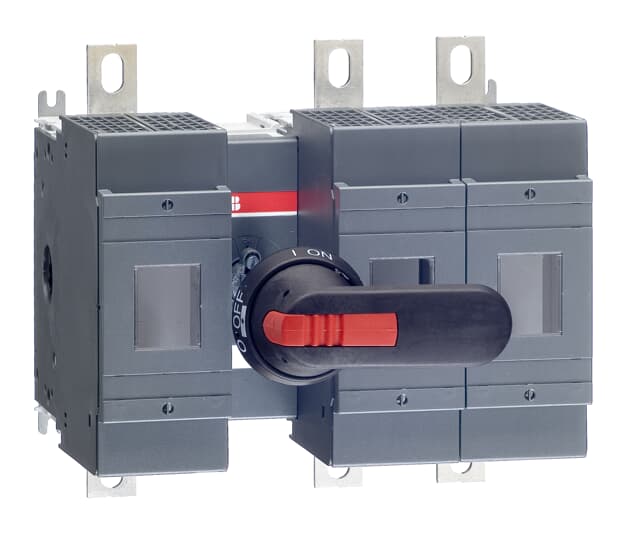

ABB OS315B12P Switch Fuses 3-P B1-B4 315A 690VAC 100 kW 160 kW 180 kW 220 kW 315 kW Front Operated Lug

Product Code: OS315B12P

  • Rated current: 315 A
  • Meets IEC 60947-3 standards
  • Handles voltage up to 690 VAC
  • Short circuit current: 80 kA
  • Pistol handle for easy operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch
Brand
ABB
Series
OS
Application
Manufacturing, utilities, infrastructure

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 690V AC
Rated Operation Power at AC-23, 400 V
160kW
Rated Operational Current AC21-A (Ie)
315A
Rated Operational Current AC22-A (Ie)
315A
Rated Operational Current AC23-A (Ie)
315A
Rated Short Time Withstand Current (Icw)
for 1 s 14kA rms
Power Loss
at Rated Operating Conditions per Pole 32W
Rated Current (In)
Main Circuit 315A
Fuse Size
B1-B4
No. of Poles
3P

Dimensions & Physical Data

Depth
176mm
Height
230mm
Weight
6.28kg
Width
255mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Accessories & Additional Information

Included Components
Pistol handle and Shaft

Documents

IPD Product Catalogue V17
