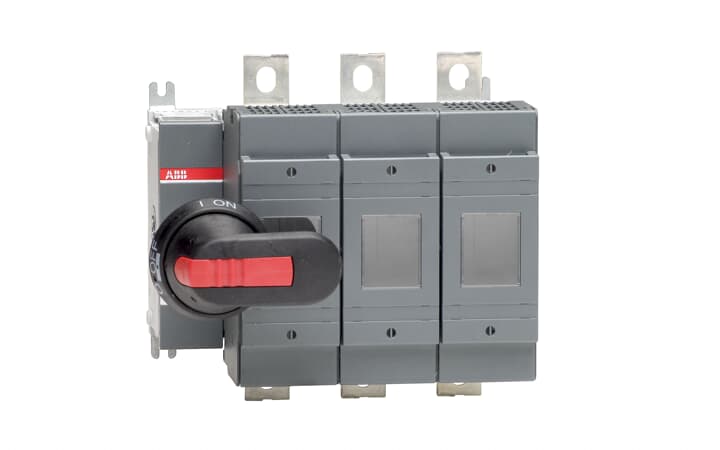

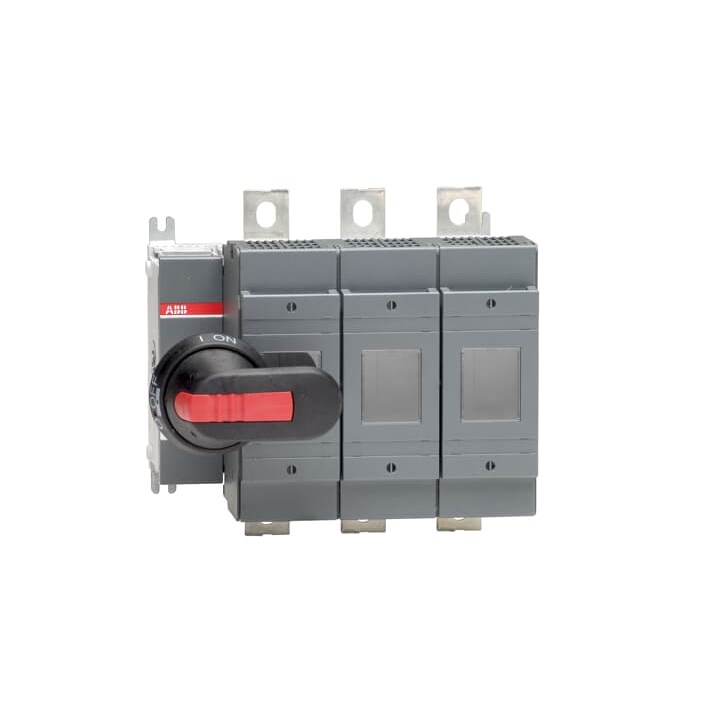

ABB OS250D03P Switch Fuses With Door Handle 3-P DIN Fuse NH0 NH1 250A 690VAC Operated Lug

Product Code: OS250D03P

  • Rated for 250 A and 690 VAC
  • Complies with IEC 60947-3 standards
  • Handles high short circuit currents up to 80 kA
  • Compact design: 208 mm width, 193 mm height
  • Suitable for NH0, NH1 DIN fuses
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch
Brand
ABB
Series
OS
Application
Manufacturing, utilities, infrastructure

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 690V AC
Rated Operation Power at AC-23, 400 V
140kW
Rated Operational Current AC21-A (Ie)
250A
Rated Operational Current AC22-A (Ie)
250A
Rated Operational Current AC23-A (Ie)
250A
Rated Short Time Withstand Current (Icw)
for 1 s 8kA rms
Power Loss
Total 51W
Rated Current (In)
Main Circuit 250A
Fuse Size
NH0 NH1
No. of Poles
3P

Dimensions & Physical Data

Depth
154mm
Height
193mm
Weight
4.1kg
Width
208mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Accessories & Additional Information

Included Components
Pistol handle and Shaft

Documents

IPD Product Catalogue V17
