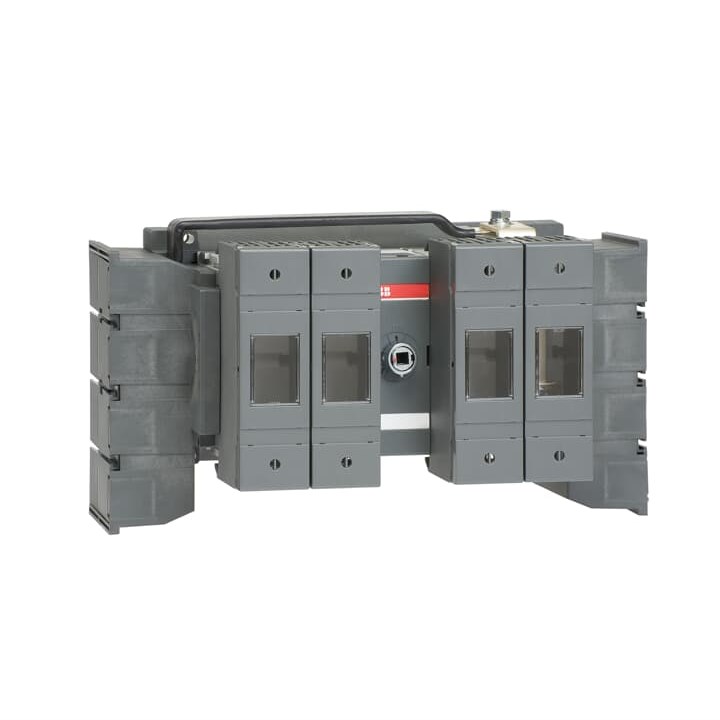

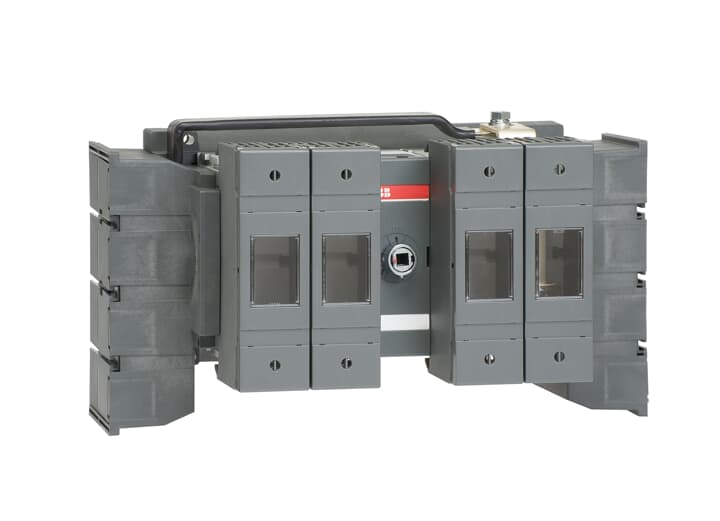

ABB OS160GD22LRP Switch Fuses With Shaft and Extension Handle 4-P DIN Fuse 160A 690VAC Front Operated Lug

Product Code: OS160GD22LRP

  • Rated current of 160 A
  • Complies with IEC 60947-3 standards
  • Handles up to 690 VAC voltage
  • Pistol handle for easy operation
  • Supports NH000, NH00 fuse sizes
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch
Brand
ABB
Series
OS
Application
Manufacturing, utilities, infrastructure

Electrical

Position of Line Terminals
Left In - Right Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 690V AC
Rated Operation Power at AC-23, 400 V
75kW
Rated Operational Current AC21-A (Ie)
160A
Rated Operational Current AC22-A (Ie)
160A
Rated Operational Current AC23-A (Ie)
160A
Rated Short Time Withstand Current (Icw)
for 1 s 5kA rms
Power Loss
at Rated Operating Conditions per Pole 12W
Rated Current (In)
Main Circuit 160A
Special Functions
Switched - Fusible Pole
Fuse Size
NH000 NH00
No. of Poles
4P

Dimensions & Physical Data

Depth
156mm
Height
150mm
Weight
3.1kg
Width
277mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Accessories & Additional Information

Included Components
Pistol handle and Shaft

Documents

IPD Product Catalogue V17
