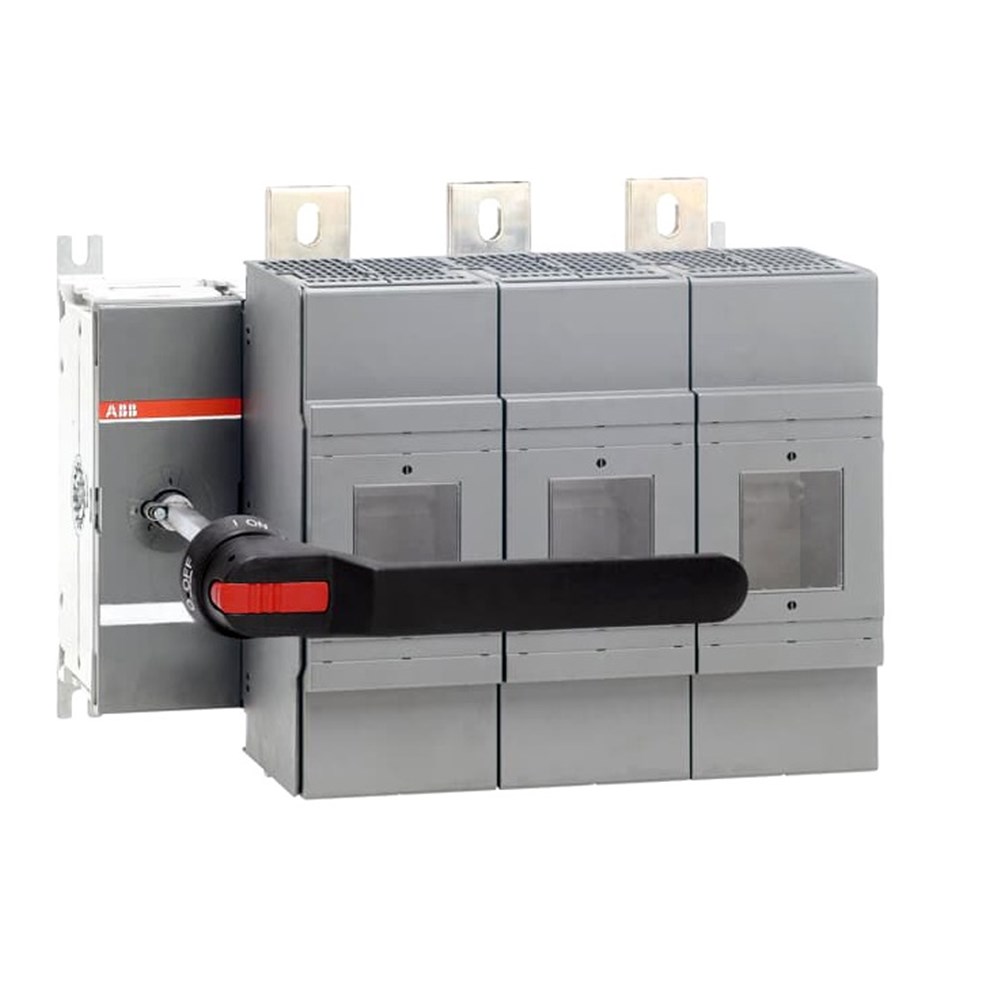

ABB OS160GD03P Switch Fuses 3-P For: NH000 1000VAC 132 kW Lug Terminal

Product Code: OS160GD03P

  • Fuse switch for busbar mounting
  • Rated current of 160 A
  • Handles up to 1000 VAC
  • Short circuit rating of 80 kA
  • Fits NH000 base with pistol handle
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch
Brand
ABB
Series
OS
Application
Manufacturing, utilities, infrastructure

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 690V AC
Rated Operation Power at AC-23, 400 V
75kW
Rated Operational Current AC21-A (Ie)
160A
Rated Operational Current AC22-A (Ie)
160A
Rated Operational Current AC23-A (Ie)
160A
Rated Short Time Withstand Current (Icw)
for 1 s 5kA rms
Power Loss
Total 24W
Rated Current (In)
Main Circuit 160A
Fuse Size
NH000 NH00
No. of Poles
3P

Dimensions & Physical Data

Depth
130mm
Height
140mm
Weight
2.035kg
Width
147mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Accessories & Additional Information

Included Components
Pistol handle and Shaft
