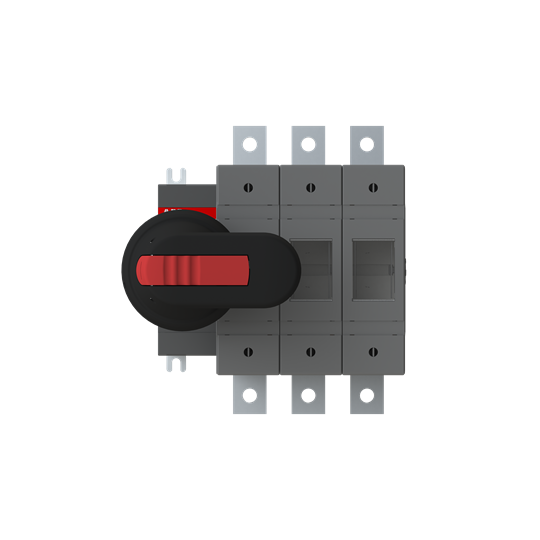

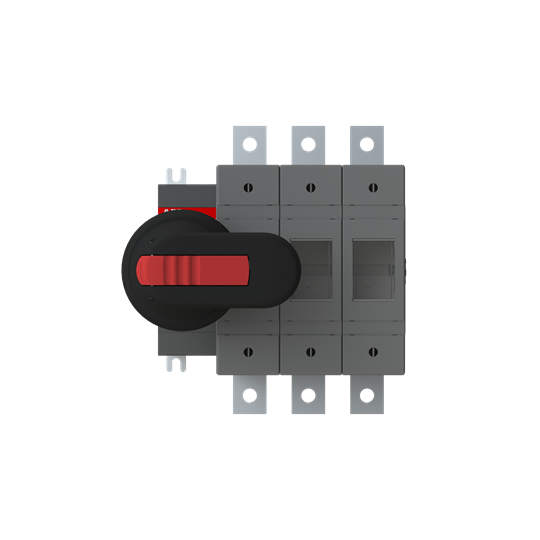

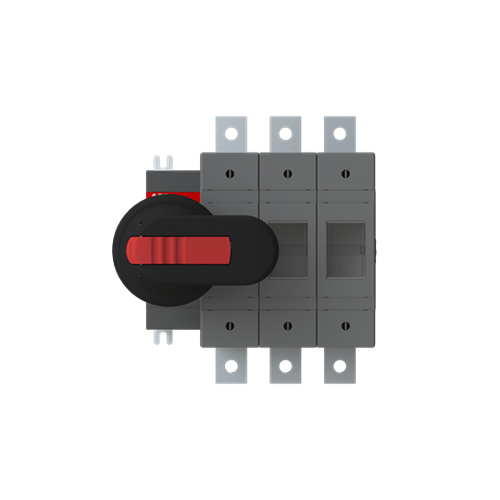

ABB OS160GB03P Switch Fuses 3-P A2-A4 160A 690VAC 45 kW 75 kW 75 kW 90 kW 132 kW Operated Lug

Product Code: OS160GB03P

  • Rated current of 160 A for reliable performance
  • Complies with IEC 60947-3 standards
  • Handles up to 132 kW power rating
  • Suitable for A2-A4 fuse sizes
  • Compact dimensions: W147 x H140 x D115 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Switch
Brand
ABB
Series
OS
Application
Manufacturing, utilities, infrastructure

Electrical

Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 690V AC
Rated Operation Power at AC-23, 400 V
75kW
Rated Operational Current AC21-A (Ie)
160A
Rated Operational Current AC22-A (Ie)
160A
Rated Operational Current AC23-A (Ie)
160A
Rated Short Time Withstand Current (Icw)
for 1 s 5kA rms
Power Loss
Total 24W
Rated Current (In)
Main Circuit 160A
Fuse Size
A2-A4
No. of Poles
3P

Dimensions & Physical Data

Depth
115mm
Height
140mm
Weight
1.6kg
Width
147mm

Environmental

Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Accessories & Additional Information

Included Components
Pistol handle and Shaft
