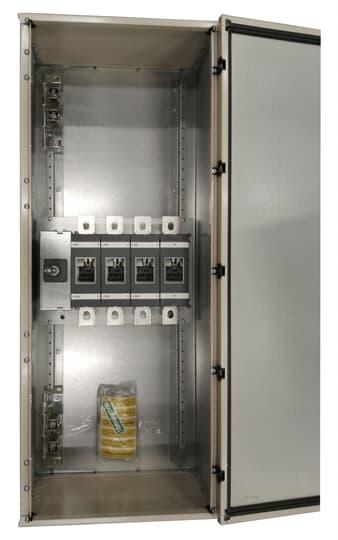

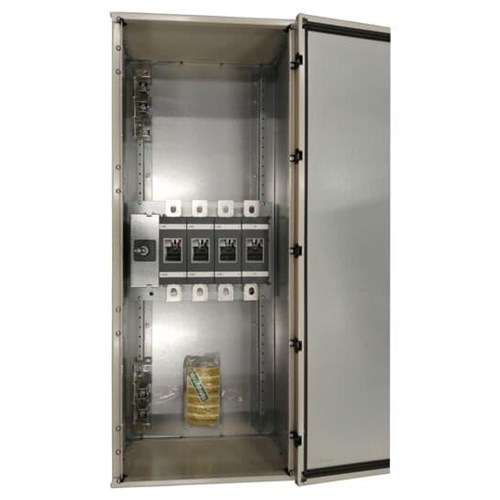

ABB OKL570N4YF3UU00 Emc Enclosed Switch 2NO+2NC IP65 570A 570A 570A 1000V 315 kW 400 kW 560 kW Bolt Terminal

Product Code: OKL570N4YF3UU00

  • Rated current of 570 A
  • IP65 protection rating
  • Pistol handle in red/yellow
  • Top and bottom cable entry
  • Steel sheet construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed switch disconnector
Brand
ABB
Series
OKL
Application
Fire-rated switching/isolation for exhaust fans in high-rise buildings, car parks and tunnels

Electrical

Rated Current
570 A (AC-23A at 380–690 V)
Rated Voltage
1000 V main circuit; 415 V AC23

Mechanical

Cable Entry
Top/bottom; blank / blank
Colour
Enclosure; RAL7032 red/yellow handle
Material
Steel sheet
Connection/Termination
Bolt terminals

Dimensions & Physical Data

Depth
230 mm
Height
1000 mm
Weight
34 kg
Width
400 mm

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, IEC 60947-3
